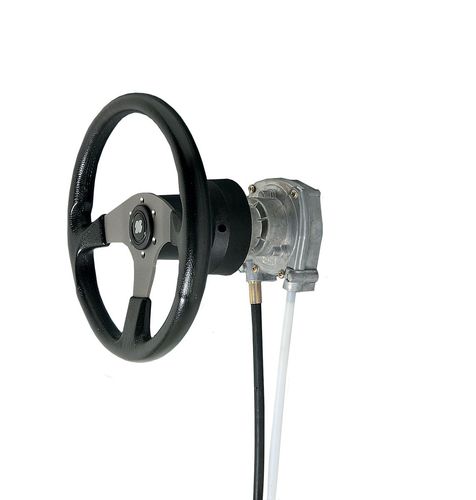

Motor boat steering T73NRFC

pull wire

A COMPLETE STEERING SYSTEM CONSISTS OF: • Steering helm: T73NRFC - 38869M single cable steering helm T74NRFC - 38870W dual cable steering helm • Mounting bezel: X34 - 36654B - black, 90° mounting X34W - 40654C - white, 90° mounting X35 - 36655C - black, 20° mounting • Steering cable: M66 NOTE: two M66 are needed with the T74NRFC system • Optional steering wheel • Engine connection kits FEATURES AND TECHNICAL SPECIFICATIONS: • Easy and safe steering : a patented anti-feedback mechanism eliminates the continuous load on the operator caused by the propeller torque • Fast connect, simple installation • Compact rotary helm unit: the central location of the steering shaft makes these systems the most compact in their class • Most suitable where clearance is limited • Ideal for outboards and surfacing propellers • Optional 90° or 20° installation • Standard 3/4” tapered shaft • All stainless steel cable output ends • Made exclusively in corrosion resistant materials • Lock-to-lock steering wheel turns: approx 3,8 • Stroke: 228 mm (9”) • Maximum allowable steering wheel diameter: 406 mm (16”) • Minimum steering cable bend radius: 200 mm (7.9”) • T73NRFC and T74NRFC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat • For boats faster than 50 mph Ultraflex hydraulic steering systems are recommended • Available in package with ROTECH-III • Exceeds EN 28848 safety standards • Exceeds ABYC P17 safety standards
