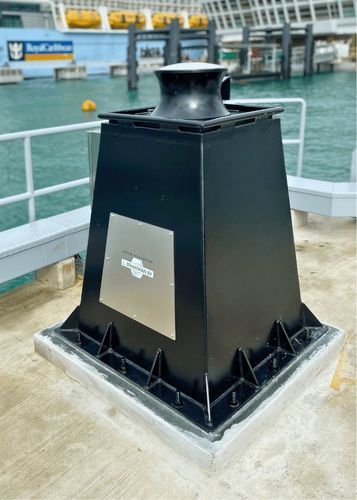

Boat capstan

shipsfor work boatsfor marinas

Product overview
Custom-made capstans where safety, efficiency and durability come together. Capstans support safe and efficient handling of mooring lines during mooring operations. They are often supplied as an integrated part of Quick Release Mooring Hook units, but are also delivered as free-standing vertical capstans for use in combination with other deck equipment such as bollards or basic quick release hooks. Our standard range uses high-quality electric motors for reliable performance and consistent control. Thanks to multidisciplinary knowledge and high-tech machinery, Straatman can produce any kind of capstan construction and offers a wide range of modification options varying in size, power, material and added features.

Standard range – key information

• Nominal pull: 10-30 kN
• Line speed: 10-30 m/s
• Brake: mechanical (back stop)
• Switch box and foot switch included
• Preservation in accordance with DIN EN ISO 12944, category C5

Options

• Custom-made design
• Two rotation directions
• Electrical brake
• ATEX / IECEx / CSA / Class 1 Div 2 certified options for hazardous areas
• Powered by an autonomous solar system (solar-powered configuration available)

Solar powered mooring capstans
For locations where a conventional power supply is impractical or not allowed, a solar-powered system is available to drive mooring capstans. Explosion-proof solar panels are offered for use in hazardous environments to meet ATEX and IECEx requirements and relevant safety standards.

Advantages of a custom-made capstan by Straatman

• In-house production with direct access to the workshop
• Experienced team of engineers able to realize custom designs
• Excellent communication and client involvement during production
• Expertise in designing capstans that ensure rope, cable or chain protection
• Designs adjustable to requested speed and timing settings

Technical specifications

• Nominal pull: 10-30 kN
• Line speed: 10-30 m/s
• Brake type: mechanical (back stop) — electrical brake optional
• Controls: switch box and foot switch included
• Corrosion protection: preservation per DIN EN ISO 12944, category C5
• Certifications/options: ATEX, IECEx, CSA, Class 1 Div 2 for hazardous areas (on request)
• Power options: mains electric drive or autonomous solar-powered system
• Customization: size, power, material and additional features available on request
