Description
Product overview

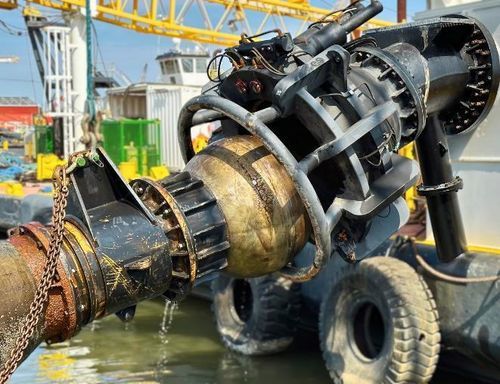

The Straatman Quick Release Ball Joint enables safe, rapid and controlled disconnection of dredging pipelines. It is engineered for offshore and nearshore dredging where quick separation under load or pressure is required to protect personnel and equipment.
Purpose-Built for Dredging Operations
Designed specifically for dredging systems, the quick release ball joint (pinch ball joint) provides a reliable coupling that can be released quickly without compromising pipeline integrity or vessel operations.
Typical applications
Operation & usage
The female part is mounted to the dredger or pontoon and the male part to the floating pipeline or hose. Release is performed via a retaining ring that couples the male and female parts. Operation can be hydraulic for larger sizes to ensure controlled separation; smaller sizes allow manual operation.
Construction
The assembly consists of three principal components: female part, male part and a two-piece hinged retaining ring integrated into the female housing. This design ensures secure coupling while permitting quick release when required.
Technical specifications
Key features
Available options
The Straatman Quick Release Ball Joint enables safe, rapid and controlled disconnection of dredging pipelines. It is engineered for offshore and nearshore dredging where quick separation under load or pressure is required to protect personnel and equipment.
Purpose-Built for Dredging Operations
Designed specifically for dredging systems, the quick release ball joint (pinch ball joint) provides a reliable coupling that can be released quickly without compromising pipeline integrity or vessel operations.
Typical applications
- Dredging pipelines under pressure
- Emergency or rapid disconnection scenarios
Operation & usage
The female part is mounted to the dredger or pontoon and the male part to the floating pipeline or hose. Release is performed via a retaining ring that couples the male and female parts. Operation can be hydraulic for larger sizes to ensure controlled separation; smaller sizes allow manual operation.
Construction
The assembly consists of three principal components: female part, male part and a two-piece hinged retaining ring integrated into the female housing. This design ensures secure coupling while permitting quick release when required.
Technical specifications
- Inside pipe diameters: Ø 300 – Ø 1.100 mm
- Max. swivel angle (male part): 20° (standard)
- Max. operating pressure: 6 – 45 Bar
Key features
- Fast and controlled disconnection: Enables safe pipeline separation under demanding conditions
- Operational safety: Minimises risk to crew and equipment during disconnection
- Proven reliability: Suitable for repeated use in heavy-duty dredging operations
Available options
- Hydraulic operation for controlled, remote disconnection
- Higher pressure ratings for specific applications
- Deviating swivel angles to compensate pipeline misalignment and vessel movement
- Exchangeable liners for rapid replacement and reduced maintenance downtime
- Catch ring or custom cones to improve guidance during connection/disconnection
