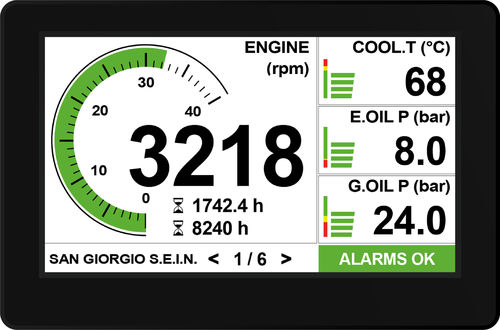

Boat monitoring and control panel UNS10191

enginetouch screen

Compact monitoring and control system designed to measure the main engine parameters in one compact and easy to use instrument. It offers a 4,3” resistive touch screen display. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. One J1939 CAN Bus port can be used to interface multifunction navigation systems. Dimensions 118 x 78 x 32 mm Mounting hole 107 x 67 mm Display 4,3” color TFT LCD, high brightness 700cd Resolutions 480 x 272 pixel Touch screen Resistive Inputs / Outputs 4 x Analog inputs 0-300Ω / Outputs (PNP) 3 x Analog inputs 0-32V / Outputs (PNP) 1 x Frequency input W alternator / pickup 1 x Analog input 0-3V / TA Current 2 x Digital Outputs (PNP) Power supply 12/24V Operating temperature -20 +70 °C Protection grade IP64 Weight 200g
