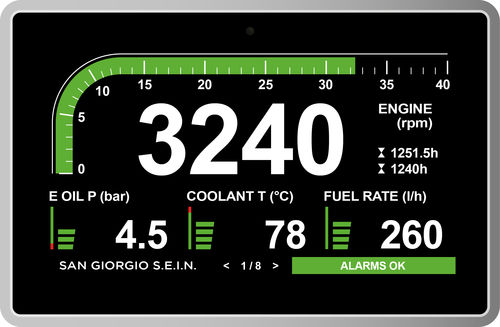

Boat monitoring and control panel UNS10193

for yachtsenginetouch screen

High performance compact monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a 7” touch screen display with integrated ambient light sensor and special software designed for visibility in any light and operating condition. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. Two J1939 CAN Bus ports, one also compatible with NMEA2000 standard, can be used to interface multifunction navigation systems. It can be customised and programmed via USB interface. Dimensions 188 x 123 x 69mm Mounting hole 178 x 114mm Display 7” color TFT LCD, high brightness 700cd Resolutions 800 x 480 pixel Touch screen Capacitive Frame Satin anodized aluminum Black satin anodized aluminum Inputs / Outputs 4 x Analog inputs 0-10V / 4-20mA 4 x Analog inputs 0-300Ω 1 x Frequency input W alternator / pickup 5 x Digital Inputs / outputs Communication Ports 2 x CAN Bus 2.0B 1 x NMEA2000 1 x NMEA0183 1 x RS232/485 1 x USB OTG Power supply 9-36 V <500mA Operating temperature -20 +70 °C Protection grade IP65 Weight 840g Accessories Protective cover for display
