Boat monitoring and control panel UNS10192
for yachtsenginetouch screen

boat monitoring and control panel
boat monitoring and control panel
boat monitoring and control panel
Add to favorites
Compare this product

Characteristics

Application domain
for boats, for yachts
Applications
engine
Other characteristics
touch screen

Description

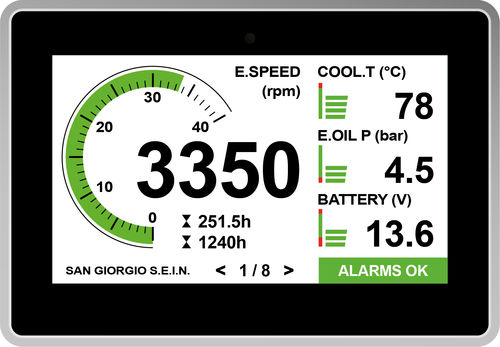

High performance compact monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a 5” touch screen display with integrated ambient light sensor and special software designed for visibility in any light and operating condition. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. Two J1939 CAN Bus ports, one also compatible with NMEA2000 standard, can be used to interface multifunction navigation systems. It can be customised and programmed via USB interface. Dimensions: 144 x 100 x 145 mm ________________________________________________________ Mounting hole: 136 x 92 mm ________________________________________________________ Display: 5” color TFT LCD, high brightness 800cd ________________________________________________________ Risolution: 480 x 272 pixel ________________________________________________________ Touch screen: Capacitive ________________________________________________________ Power supply: 9-36 V ________________________________________________________ Connectors: 2 x Deutsch 12 pin ________________________________________________________ Protection grade: IP67 ________________________________________________________ Operating temperature: -20 +70 °C

Catalogs
