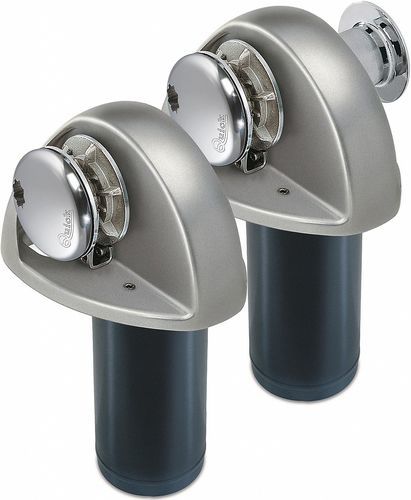

Electric windlass E1

for boathorizontalsingle-drum

Horizontal windlasses with a base in anodized aluminum in hard oxide. Available with and without drum. Integrated sensor and magnet for chain counter. Manual Free-Fall system. IP66 watertight motor. Easy Installation: the vertical motor allows for extremely simple and quick installation. For boats from 5 to 9 metres (16 - 29 ft) - Eagle 300 W: 5 - 7 m (16 - 23 ft) - Eagle 500 W: 6 - 9 m (20 - 29 ft) The indication may vary according to the boat type and the anchor-rode type. Gypsy and Drum: Ø 90 mm / 3" 35/64 GYPSY: 6 mm CHAIN: 6 mm (DIN 766, ISO) Supplied accessories standard: - Contactor units - Nylon handle Models: - T6415-12 - 300 W, 12 V - 500 W, 12 V Optional accessories: - Hydraulic magnetic circuit breaker - UP/DOWN control board - Foot switches - Handheld remote control - Chain counters - Radio remote control Technical specifications / Features: - Horizontal windlass with anodized aluminum base - Available with or without drum - Integrated chain counter sensor and magnet - Manual Free-Fall system - IP66 watertight motor - Easy installation with vertical motor - Suitable for boats 5-9 m (16-29 ft) - Gypsy and Drum diameter: 90 mm - Chain size: 6 mm (DIN 766, ISO) - Power: 300 W or 500 W, 12 V
