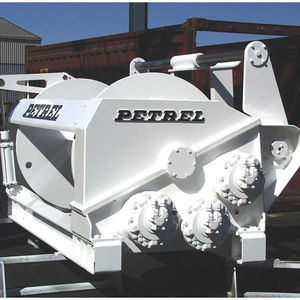

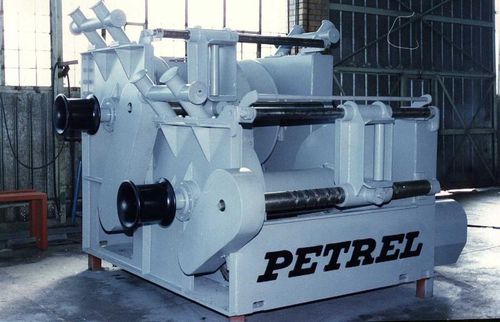

Ship winch SRW-110-SAB-SF2
oceanographic researchhydraulic drivesingle-drum

ship winch
ship winch
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Use
oceanographic research
Drive mechanism
hydraulic drive
Technology
single-drum
Motor power

67 kW
(91.09 hp)

Description

Drive: 2 X Staffa Hydraulic Oil flow - 213 l/min Oil pressure - 19 MPa Rope Speed: Slow: Bare drum - 23 l/min Mid drum - 48 l/min Full drum - 65 l/min Rope Speed: Fast: Bare drum - 34 l/min Mid drum - 71 l/min Full drum - 97 l/min Rope Pull: Slow: Bare drum - 10.9 ton Mid drum - 5.1 ton Full drum - 3.8 ton Rope Speed: Fast: Bare drum - 7.3 ton Mid drum - 3.5 ton Full drum - 2.5 ton Mass - 2.733 ton
