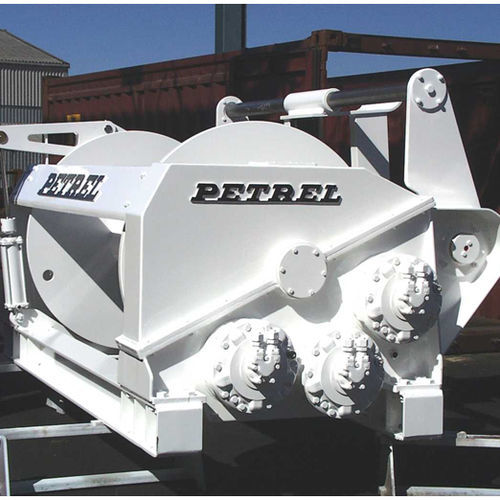

Ship winch 7358
mooringhydraulic drivesingle-drum

ship winch
ship winch
Add to favorites
Compare this product


Application domain
for ships
Drive mechanism
hydraulic drive
Motor power

76 kW (103.33 hp)


The Petrel Auxiliary Winches are designed to accommodate winching functions other than that covered by the 65, 80, 100, 125, 140, 180 and 220 standard winch range. Typical applications for which the Petrel winch range has been used are : mooring winches, rescue winches, slipway winches, towing winches, cod end winches, sweepline winches, outhaul winches, zipper winches, cargo winches, end wire winches, boom winches, oceanographic winches and more. Generally applying one of the options (i.e. with or without guiding gear, horns, warping head, clutch etc.) the standard Petrel Winch range accommodates the above functions, but should this not be the case, Petrel can modify or re-design one of the winches to accommodate the required specifications. Different models are available for this product, more information on our website: TOWING WINCH 60 t TOWING WINCH 35 t Drive: Oil flow - 240 l/min Oil pressure - 19 MPa Drum capacity: Ø38 mm x 1600 m Rope Speed: Slow: Bare drum - 11 m/min Mid drum - 16 m/min Full drum - 21 m/min Rope Speed: Fast: Bare drum - N/A Mid drum - N/A Full drum - N/A Rope Pull: Slow: Bare drum - 36.4 ton Mid drum - 25.1 ton Full drum - 19.2 ton Rope Speed: Bare drum - N/A Mid drum - N/A Full drum - N/A Mass - 10 ton
