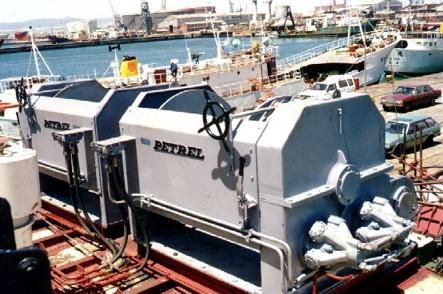

Ship winch 28178
mooringhydraulic drivesingle-drum

ship winch
ship winch
Add to favorites
Compare this product


Application domain
for ships
Drive mechanism
hydraulic drive
Motor power

76 kW (103.33 hp)


The Petrel Auxiliary Winches are designed to accommodate winching functions other than that covered by the 65, 80, 100, 125, 140, 180 and 220 standard winch range. Typical applications for which the Petrel winch range has been used are : mooring winches, rescue winches, slipway winches, towing winches, cod end winches, sweepline winches, outhaul winches, zipper winches, cargo winches, end wire winches, boom winches, oceanographic winches and more. Generally applying one of the options (i.e. with or without guiding gear, horns, warping head, clutch etc.) the standard Petrel Winch range accommodates the above functions, but should this not be the case, Petrel can modify or re-design one of the winches to accommodate the required specifications. Different models are available, more information on our website: MOORING WINCH 35 t MOORING WINCH - 100 t Drive: Oil flow - 240 l/min Oil pressure - 19 MPa Rope Speed: Bare drum - 11 m/min Mid drum - 16 m/min Full drum - 21 m/min Rope Pull: Bare drum - 36.4 ton Mid drum - 25.1 ton Full drum - 19.2 ton Mass - 10 ton
