Boat steering 7004
hydraulic

boat steering
boat steering
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Operation
hydraulic

Description

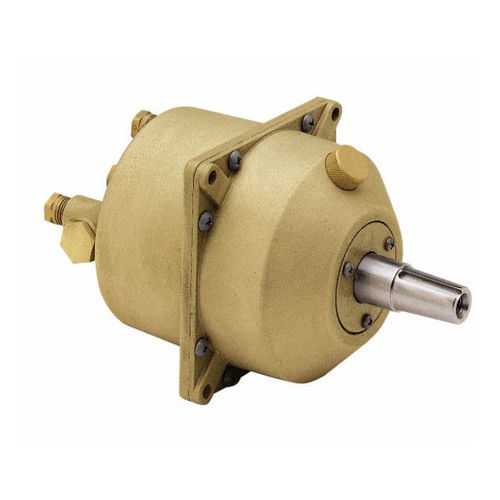

The Model 7004 Helm Pump is a fixed displacement pump producing 3.4 cu. in. per turn. Higher capacity at 4.5 cu. in. per turn is also available. Incorporated with lock valves, filler plug and interconnecting plugs, the pump can be used in multi-station applications. When used with the Kobelt tilt up mechanism, this model forms an excellent choice in the steering system. Details see our product model 7035. It is constructed in bronze and stainless steel for the majority of the components. Bearings, pistons and pintol are made of hardened and ground steel. Designed for heavy duty applications, the unit can be installed almost anywhere on the boat. It is a true marine product well covered by the standard Kobelt warranty. Standard capacity: 3.4 cu. in. per turn Option: 4.5 cu. in. per turn Nominal working pressure: 1000 psi Ordering Information A - with cast bronze finish B - with black epoxy finish L - with long shaft N - with short shaft T: - with tapered shaft X - high capacity (4.5 cu. in) option V - with vent plug Example: 7004-AL is for a long shaft, standard 3.4 cu. in. capacity model with cast bronze finish. Weight: 17.5 lb. (8 kg)
