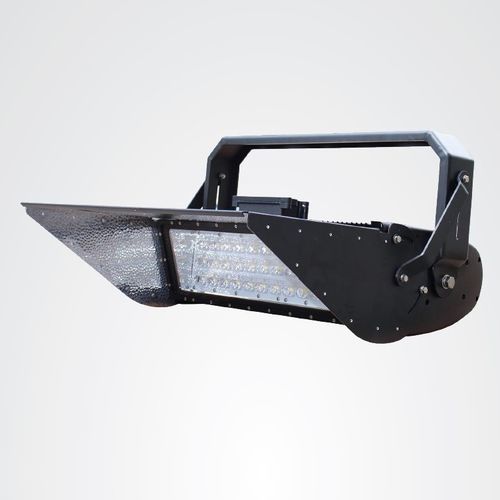

Exterior floodlight JNHM2-1250S-5700-A2-ND

for shipsfor harborfor marinas

Product overview
1250 Watt LED flood light, with original Philips LumiLEDs and Meanwell driver(s). Non-dimmable. IP65. Replaces 100 Watt metal halide/HID/HPS.

Features

• High power LED flood light: 1250 W power consumption
• Original Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver
• Non-dimmable configuration
• Ingress protection: IP65
• IK08 impact rating
• Symmetric 90°x90° beam (fixed)
• Tempered glass lens
• High efficacy: 120 lm/W
• Long lifespan: 80,000 hours
• Working temperature range: -20°C to 45°C

Product specifications (table)
Product SKU : JNHM2-1250S-5700-A2-ND
Power Consumption : 1250 W
Input Voltage : 120-277
Beam Angle (°) : 90°
IP Rating : IP65
Color Rendering Index : >70
LED Type : Philips Lumileds
Color Temperature (K) : 5700 K
IK Impact Rating : IK08
Dimming Capability : Non-dimmable
Housing Colour : Marine-Grey
Warranty Period (Years) : 5
Power Factor : >0.95
Surge Protection : 10kV
Input Cable : H07RN-F 3G2.5
Working Temperature Range : -20°C ~ 45°C
Working Humidity Range : 10%-95% RH
Lifespan (Hours) : 80,000 hours
Beam Angle Range : 90°x90° (Fixed)
Beam Angle Format : Symmetric
Number of LED Modules : 8 modules
LED Driver Brand : Meanwell HLG-1000H
Lens Material : Tempered Glass
System Power (W) : 1295 W
Input Voltage Range : 120-277V AC/ 347~488V AC (optional)
Fixture Height (mm) : 550 mm
Fixture Length (mm) : 480 mm
Fixture Width (mm) : 320 mm
Total Lumens Output : 143,500 lm
Efficacy (lm/W) : 120 lm/W

Packaging & shipping (table)
Net Weight (kg) : 23 kg
Export Carton Dimensions (mm) : 900x1350x487 mm
Products per Carton : 2
Export Carton Gross Weight (kg) : 26 kg
Fixture Height (mm) : 550 mm
Fixture Width (mm) : 320 mm

Technical characteristics / specifications

• SKU: JNHM2-1250S-5700-A2-ND
• Power Consumption: 1250 W
• System Power: 1295 W
• Input Voltage: 120-277 (standard); optional 347~488V AC
• Input Voltage (detailed): 120-277V AC / 347~488V AC (optional)
• Input Cable: H07RN-F 3G2.5
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-1000H
• Number of LED Modules: 8 modules
• Colour Temperature (CCT): 5700 K
• CRI: >70
• Beam Angle: 90°x90° (Fixed), Symmetric
• Total Lumens Output: 143,500 lm
• Efficacy: 120 lm/W
• IK Impact Rating: IK08
• IP Rating: IP65
• Surge Protection: 10 kV
• Power Factor: >0.95
• Dimming: Non-dimmable
• Lens Material: Tempered Glass
• Housing Colour: Marine-Grey
• Fixture Dimensions (H x L x W): 550 mm x 480 mm x 320 mm
• Lifespan: 80,000 hours
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 95% RH
• Net Weight: 23 kg
• Export Carton Dimensions: 900 x 1350 x 487 mm
• Products per Carton: 2
• Export Carton Gross Weight: 26 kg
• Warranty Period: 5 years
