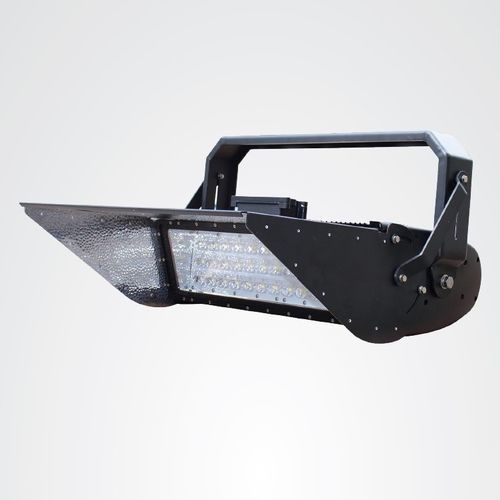

Exterior floodlight JNHM2-1250S-5700-A1-ND

for shipsfor harborfor marinas

Short description
1250 W LED floodlight equipped with original Philips Lumileds and Meanwell HLG-1000H driver(s). Non-dimmable. IP65 rated for outdoor and high-mast installations. Replaces 100 Watt metal halide/HID/HPS.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver(s)
• Non-dimmable (fixed output)
• IP65 rated for outdoor/high-mast use
• IK08 impact rating
• High efficacy: 120 lm/W
• Long lifespan: 80,000 hours
• Surge protection 10kV
• Robust tempered glass lens
• Marine-Grey housing

Product specifications
Product SKU: JNHM2-1250S-5700-A1-ND
Power Consumption: 1250 W
Input Voltage: 120-277
Beam Angle (°): 30°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Colour Temperature (K): 5700
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G2.5
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 15°x15° (Fixed)
Beam Angle Format: Symmetric
Number of LED Modules: 8 modules
LED Driver Brand: Meanwell HLG-1000H
Lens Material: Tempered Glass
System Power (W): 1295 W
Input Voltage Range: 120-277V AC / 347~488V AC (optional)
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Total Lumens Output: 143,500 lm
Efficacy (lm/W): 120 lm/W

Packaging & shipping
Net Weight (kg): 23 kg
Export Carton Dimensions (mm): 900x1350x487 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 26 kg
Fixture Height (mm): 550 mm
Fixture Width (mm): 320 mm
Fixture Length (mm): 480 mm

Technical specifications

• SKU: JNHM2-1250S-5700-A1-ND
• System power: 1295 W (nominal consumption 1250 W)
• Input voltage: 120-277V AC (347~488V AC optional)
• Beam angle: 30° (symmetric)
• IP rating: IP65
• CRI: >70
• LED type: Philips Lumileds
• CCT: 5700 K (cool white)
• IK rating: IK08
• Dimming: Non-dimmable
• Housing colour: Marine-Grey
• Warranty: 5 years
• Power factor: >0.95
• Surge protection: 10 kV
• Input cable: H07RN-F 3G2.5
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–95% RH
• Lifespan: 80,000 hours
• Number of LED modules: 8
• LED driver: Meanwell HLG-1000H
• Lens: Tempered glass
• Total lumen output: 143,500 lm
• Efficacy: 120 lm/W
• Net weight: 23 kg
• Carton dimensions: 900x1350x487 mm (2 per carton)
