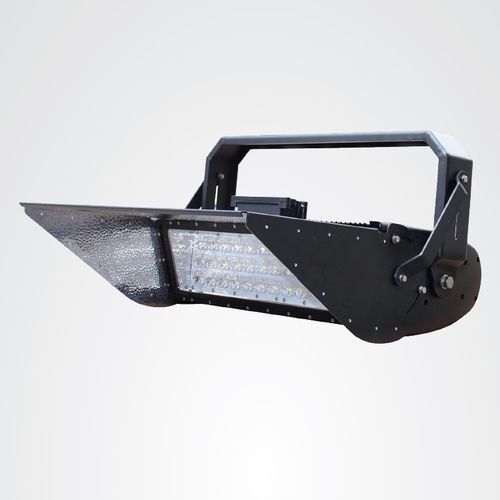

Exterior floodlight JNHM2-1250S-5700-A3-ND

for shipsfor shipyardsfor marinas

Short description
The JNHM2-1250S-5700-A3-ND is a 1250 W LED high-mast floodlight equipped with original Philips Lumileds and a Meanwell HLG-1000H driver. Non-dimmable, IP65 and IK08 rated. Symmetric narrow beam 15°x15°, cool white 5700 K, system output 143,500 lm and efficacy 120 lm/W. Designed for high-mast and large-area installations as a replacement for high-power HID/HPS luminaires.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver
• Non-dimmable
• IP65 ingress protection
• IK08 impact rating
• Marine-Grey housing
• Surge protection 10kV
• Input cable: H07RN-F 3G2.5
• Operating temperature: -20°C to 45°C
• Working humidity range: 10%–95% RH
• Lifespan: 80,000 hours
• 8 LED modules
• Tempered glass lens
• Beam: symmetric 15°x15° (fixed)
• Total lumens output: 143,500 lm (system)
• Efficacy: 120 lm/W

Product Specifications (table)
Product SKU: JNHM2-1250S-5700-A3-ND
Power Consumption: 1250 W
System Power (including driver): 1295 W
Input Voltage: 120-277V AC (347~488V AC optional)
Beam Angle: 15°x15° (fixed), symmetric
IP Rating: IP65
IK Impact Rating: IK08
Colour Temperature: 5700 K
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
LED Driver: Meanwell HLG-1000H
Power Factor: >0.95
Surge Protection: 10kV
Lens Material: Tempered glass
Number of LED Modules: 8
Total Lumens Output: 143,500 lm
Efficacy: 120 lm/W

Packaging & Shipping
Net Weight: 23 kg
Export Carton Dimensions: 900 x 1350 x 487 mm
Products per Carton: 2
Export Carton Gross Weight: 26 kg
Fixture Dimensions (HxLxW): 550 mm x 480 mm x 320 mm

Technical specifications

• SKU: JNHM2-1250S-5700-A3-ND
• Model: JNHM2
• Power consumption: 1250 W
• System power (including driver): 1295 W
• Input voltage: 120-277V AC (347~488V AC optional)
• Beam angle: 15°x15° (fixed), symmetric
• IP rating: IP65
• IK rating: IK08
• CRI: >70
• LED type: Philips Lumileds
• Colour temperature: 5700 K
• LED driver: Meanwell HLG-1000H
• Power factor: >0.95
• Surge protection: 10kV
• Input cable: H07RN-F 3G2.5
• Operating temperature: -20°C to 45°C
• Working humidity: 10%–95% RH
• Lifespan: 80,000 hours
• Number of LED modules: 8
• Lens material: Tempered glass
• Total lumens: 143,500 lm
• Efficacy: 120 lm/W
• Housing colour: Marine-Grey
• Warranty: 5 years
• Net weight: 23 kg
• Fixture dimensions (HxLxW): 550 mm x 480 mm x 320 mm
