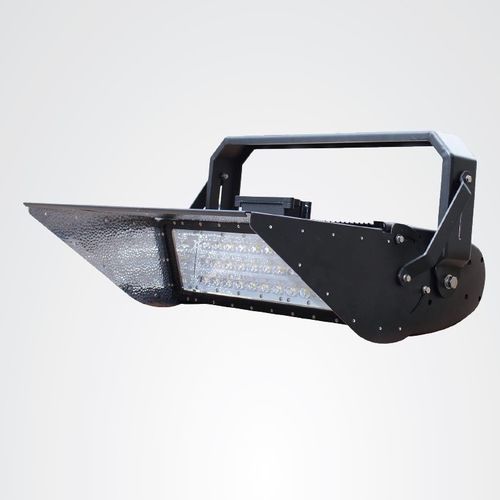

Exterior floodlight JNHM2-1250S-5000-A5-DIM

for shipsfor shipyardsfor marinas

Product overview
1250 W LED flood light with Philips Lumileds and Meanwell HLG-1000H drivers. Dimmable (0-10V). IP65 rated for outdoor high-mast and area lighting. Replaces 100 Watt metal halide/HID/HPS.

Key features

• Original Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver
• Dimmable (0-10V)
• High ingress protection: IP65
• Impact rating: IK08
• Symmetric 90°x90° beam (fixed)
• Marine-grey housing, tempered glass lens
• Designed for long lifetime: 80,000 hours

Product specifications (table)
Product SKU: JNHM2-1250S-5000-A5-DIM
Power Consumption: 1250 W
System Power: 1295 W
Input Voltage: 120-277V AC (standard); 347~488V AC (optional)
Beam Angle: 90°x90° (Fixed), Symmetric
IP Rating: IP65
CRI: >70
Color Temperature: 5000 K (cool white)
Total Lumens Output: 143,500 lm
Efficacy: 120 lm/W
Dimming: 0-10V
LED Type: Philips Lumileds
LED Driver Brand: Meanwell HLG-1000H
Lens Material: Tempered Glass
Housing Colour: Marine-Grey
IK Rating: IK08
Surge Protection: 10kV
Power Factor: >0.95
Fixture Dimensions (HxLxW): 550 mm x 480 mm x 320 mm
Net Weight: 23 kg
Lifespan: 80,000 hours

Technical specifications

• Product SKU: JNHM2-1250S-5000-A5-DIM
• Power Consumption: 1250 W
• System Power: 1295 W
• Input Voltage / Range: 120-277V AC (standard); 347~488V AC (optional)
• Input Voltage Detail: 120-277
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Number of LED Modules: 8 modules
• Color Temperature: 5000 K
• CRI: >70
• Beam Angle: 90°x90° (Fixed), Symmetric
• Total Lumens Output: 143,500 lm
• Efficacy: 120 lm/W
• Dimming: 0-10V
• IP Rating: IP65
• IK Rating: IK08
• Housing Colour: Marine-Grey
• Lens Material: Tempered Glass
• Power Factor: >0.95
• Surge Protection: 10kV
• Input Cable: H07RN-F 3G2.5
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10%-95% RH
• Lifespan: 80,000 hours
• Fixture Dimensions (HxLxW): 550 mm x 480 mm x 320 mm
• Net Weight: 23 kg
• Packaging: Export carton 900 x 1350 x 487 mm; Products per carton: 2; Export carton gross weight: 26 kg
• Warranty: 5 years
