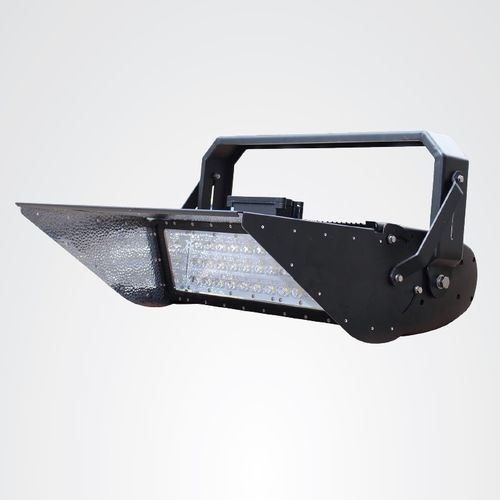

Exterior floodlight JNHM2-1250S-5000-A1-DIM

for shipsfor marinasfor terminals

Short description
1250 Watt LED flood light with Philips Lumileds LEDs and Meanwell driver(s). Dimmable via 0-10V. IP65 ingress protection and IK08 impact rating. Typical replacement for 1000 W metal halide/HID fixtures.

Features
1250 W cool white LED high mast light with fixed 15°x15° symmetric beam. Uses Philips Lumileds LEDs and Meanwell HLG-1000H driver. Dimmable (0-10V). IK08 and IP65 rated for outdoor industrial use. Marine-grey housing and tempered glass lens.

Product Specifications
Product SKU: JNHM2-1250S-5000-A1-DIM
Power Consumption: 1250 W
Input Voltage: 120-277 V (see Input Voltage Range for optional higher voltages)
Input Voltage Range: 120-277V AC / 347~488V AC (optional)
Beam Angle (°): 15°
Beam Angle Range: 15°x15° (Fixed)
Beam Angle Format: Symmetric
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index: >70
Color Temperature (K): 5000 K
LED Type: Philips Lumileds
Dimming Capability: 0-10V
LED Driver Brand: Meanwell HLG-1000H
Housing Colour: Marine-Grey
Lens Material: Tempered Glass
System Power (W): 1295 W
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G2.5
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Number of LED Modules: 8 modules
Total Lumens Output: 143,500 lm
Efficacy (lm/W): 120 lm/W
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Warranty Period (Years): 5

Packaging & Shipping
Net Weight (kg): 23 kg
Export Carton Dimensions (mm): 900x1350x487 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 26 kg
Fixture Height (mm): 550
Fixture Width (mm): 320
Fixture Length (mm): 480

Technical specifications

• Power Consumption: 1250 W
• System Power: 1295 W
• Total Lumens: 143,500 lm
• Efficacy: 120 lm/W
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Color Temperature: 5000 K (cool white)
• CRI: >70
• Beam Angle: 15°x15° (fixed, symmetric)
• Dimming: 0-10V
• Input Voltage: 120-277V AC (347~488V optional)
• Power Factor: >0.95
• Surge Protection: 10 kV
• IK Rating: IK08
• IP Rating: IP65
• Lens Material: Tempered Glass
• Housing Colour: Marine-Grey
• Number of LED Modules: 8
• Lifespan: 80,000 hours
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–95% RH
• Input Cable: H07RN-F 3G2.5
• Fixture Dimensions (H×L×W): 550×480×320 mm
• Net Weight: 23 kg
• Packaging: 2 units per carton, carton size 900×1350×487 mm, gross weight 26 kg
• Warranty: 5 years
