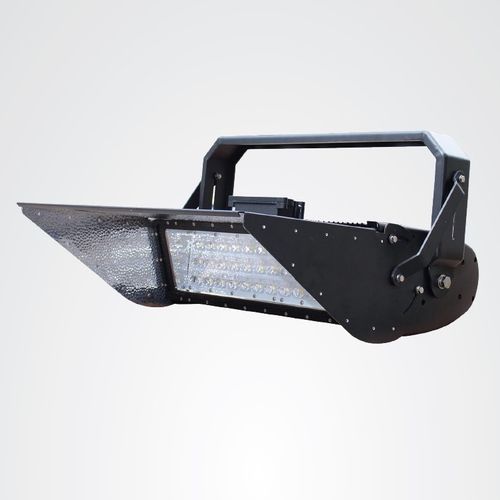

Exterior floodlight JNHM2-1250S-5700-A5-DIM

for shipyardsfor marinasfor tugboats

Short description
1250 W LED high-mast floodlight equipped with Philips Lumileds modules and a Meanwell HLG-1000H driver. Dimmable via 0-10V control, IP65 rated and IK08 impact resistant. Suitable as a modern LED replacement for conventional HID/metal halide luminaires.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver
• Dimmable (0-10V)
• IP65 ingress protection; IK08 impact rating
• Symmetric 90°x90° fixed beam
• Tempered glass lens
• Marine-grey corrosion-resistant housing
• Long lifetime: 80,000 hours
• Surge protection: 10 kV

Product specifications
Product SKU: JNHM2-1250S-5700-A5-DIM
Power Consumption: 1250 W
System Power (W): 1295 W
Input Voltage / Range: 120-277V AC (standard); optional 347-488V AC
Beam Angle: 90° x 90° (symmetric, fixed)
IP Rating: IP65
IK Impact Rating: IK08
CRI: >70
Colour Temperature: 5700 K
LED Type: Philips Lumileds (8 modules)
LED Driver Brand: Meanwell HLG-1000H
Dimming: 0-10V
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G2.5
Operating Temperature: -20°C to 45°C
Operating Humidity: 10% - 95% RH
Lifespan: 80,000 hours
Total Lumen Output: 143,500 lm
Efficacy: 120 lm/W
Fixture Dimensions (H x L x W): 550 x 480 x 320 mm
Warranty: 5 years

Packaging & Shipping
Net Weight: 23 kg
Export Carton Dimensions: 900 x 1350 x 487 mm
Products per Carton: 2
Export Carton Gross Weight: 26 kg

Technical specifications

• Modules: 8 Philips Lumileds modules
• Driver: Meanwell HLG-1000H (compatible with 0-10V dimming)
• Optics: Tempered glass lens, symmetric 90°x90°
• Ingress/Impact: IP65 / IK08
• Electrical: PF >0.95, surge protection 10kV
• Environment: -20°C to 45°C, 10%-95% RH
• Lifetime & Warranty: 80,000 hours; 5-year warranty
