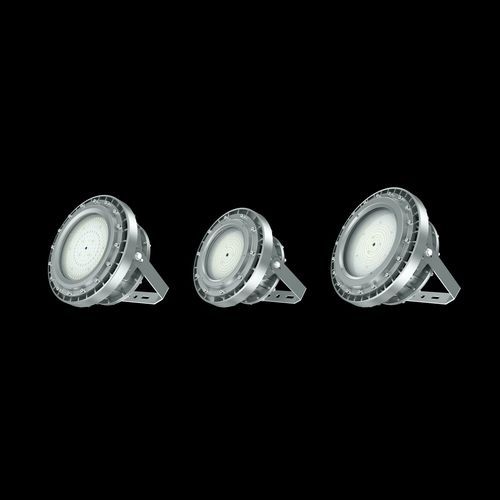

Security light JNHB-ATEXC

emergencyfor hostile environmentsmarine

Short description
JNHB-ATEXCSeries1 100W ATEX-certified explosion-proof LED luminaire for Zone 1 & 2 hazardous areas. 8400 lm output, selectable beam angles 40°, 60°, 90°, 120°, IP66 ingress protection and color temperature range 2200K–7000K. Optional emergency backup battery with 3-hour autonomy. Multiple mounting options for industrial installations.

Product specifications
SKU: JNHB-ATEXCSeries1 (100W)
Power: 100 W
Input voltage: 120–277 / 150–250 VAC / 12–48 VDC
Frequency: 50/60 Hz
Light color temperature: 2200K–7000K
LED type: SMD
Total luminous flux: 8400 lm
Efficacy: 140 lm/W
Power factor: >0.95
IK rating (glass): IK08; IK10 with wire guard
Housing: Copper-free aluminium with tempered glass
Housing colour: Grey
IP rating: IP66
CRI: >70
Beam angles available: 40°, 60°, 90°, 120°
Dimming: Non-dimmable
ATEX: II 2 G Ex db II B T6...T3 Gb; II 2 D Ex tb II C T80°C...T195°C Db
IECEx: Ex db IIB T6...T3 Gb; Ex tb IIIC T80°C...T195°C Db
UL: Class I Division 2 Groups C, D; Class I Division 1 Groups A, B, C, D; Class II Division 1 Groups E, F, G; Class II Division 2 Groups F, G; Class III
Retilap: Esquema 5 RETILAP
Fixture shape: Round
Dimensions (H×W×L): 254×270×406 mm
Net weight: 14 kg
Operating temp: -20°C to +45°C
Operating humidity: 10–95% RH
Lifespan: 80,000 hours

Features

• Optional 3-hour emergency backup battery
• Multiple mounting methods: ceiling, wall, hook pendant, pole pendant, diagonal pole, wall with junction box (90°)
• High ingress and impact protection suitable for harsh environments
• Wide color temperature range and selectable beam angles for application flexibility
• Certified for gas Group IIC and Temperature Class T6 (see standards)

Packaging & shipping
Product dimensions: 254×270×406 mm
Net weight: 14 kg
Export carton dimensions: 479×470×345 mm
Products per carton: 1
Export carton gross weight: 16 kg
