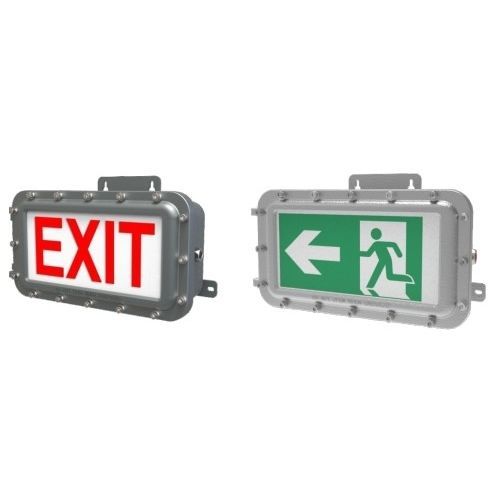

External emergency exit sign JN-ATEX-Exit1

for ships

Short description
Available mounting method: wall mounting. With hinged access door. Supplied with 3/4” NPT or M25 conduit hubs. Label content can be customized (labels in various languages and with different exit signs are available).

Features

• Wall mounting
• Hinged access door
• Supplied with 3/4” NPT or M25 conduit hubs
• Customizable label content (various languages and exit signs available)
• LED Type: SMD
• Non-dimmable
• IK08 impact rating (IK10 with wire guard)
• IP67 rated for ingress protection

Product Specifications (table)
Product SKU: JN-ATEX-Exit1Series
Power Consumption: 20
Input Voltage: AC100-277V, By driver and by IC
Input Frequency: 50/ 60Hz
Light Color: 2700K-6500K
LED Type: SMD
Total Lumens Output: 540-1,080
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK08
Housing Colour: Grey
Housing Material: Die-casting Aluminium
Warranty Period (Years): 5
IP Rating: IP67
Color Rendering Index: >70
Beam Angle (°): 30°, 60°, 90°, 120°
Dimming Capability: Non-dimmable
ATEX Standard: II 2 G Ex db IIB+H2 T6 Gb; II2 D Ex tb IIIC T80°C Db
IECEx Standard: Ex db IIB+H2 T6 Gb; Ex tb IIIC T80°C Db
UL Standard: Class I, Division 2, Groups A, B, C, D; Class I, Zone 1, AEx eb mb IIC T6...T4 Gb; Class II, Division 1, Groups E, F, G
Retilap Standard: Esquema 5 RETILAP
Fixture Shape: Rectangular
Fixture Height (mm): 162 mm
Fixture Width (mm): 270 mm
Fixture Length (mm): 443 mm
Net Weight (kg): 18 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
IK Rating with Wire Guard: IKIK10 (with wire guard)
Working Temperature Range: -20°C to +45°C
Working Humidity Range: 10-95% RH
Lifespan (Hours): 80,000 hours

Notes
Available mounting method: wall mounting. With hinged access door. Supplied with 3/4” NPT or M25 conduit hubs. Label content can be customized (labels in various languages and with different exit signs are available).

Caractéristiques / spécifications techniques

• Product SKU: JN-ATEX-Exit1Series
• Power Consumption: 20 W
• Input Voltage: AC100-277V, By driver and by IC
• Input Frequency: 50/60Hz
• Light Color: 2700K-6500K
• LED Type: SMD
• Total Lumens Output: 540-1,080 lm
• Luminous Efficacy: 140 lm/W
• Power Factor: >0.95
• IK Impact Rating: IK08
• Housing Colour: Grey
• Housing Material: Die-casting Aluminium
• Warranty Period: 5 years
• IP Rating: IP67
• CRI: >70
• Beam Angle: 30°, 60°, 90°, 120°
• Dimming: Non-dimmable
• ATEX Standard: II 2 G Ex db IIB+H2 T6 Gb; II2 D Ex tb IIIC T80°C Db
• IECEx Standard: Ex db IIB+H2 T6 Gb; Ex tb IIIC T80°C Db
• UL Standard: Class I Division 2 (Groups A-D); Class I Zone 1 AEx eb mb IIC T6...T4 Gb; Class II Division 1 (Groups E-G)
• Retilap Standard: Esquema 5 RETILAP
• Fixture Shape: Rectangular
• Fixture Dimensions (H×W×L): 162×270×443 mm
• Net Weight: 18 kg
• Temperature Class: T6
• Gas Group: IIC
• Protection Type: Ex eb mb
• Zone Classification: Zone 1 & 2
• IK Rating with Wire Guard: IK10 (with wire guard)
• Working Temperature Range: -20°C to +45°C
• Working Humidity Range: 10-95% RH
• Lifespan: 80,000 hours
