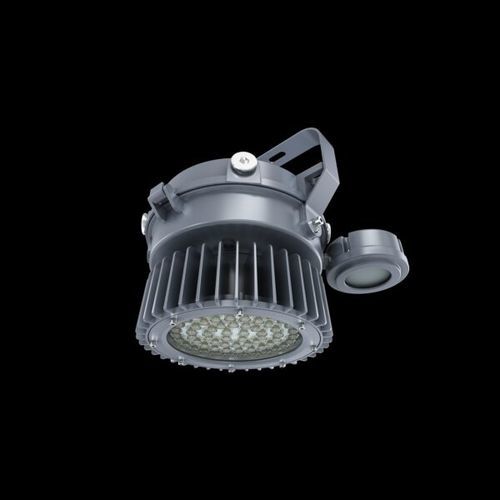

Security light JNHB-ATEX-G

emergencyfor hostile environmentsfor shipyards

Short description
ATEX and IECEx certified explosion-proof LED luminaire designed for hazardous areas (Zone 1 & 2). Compact round fixture available in multiple mounting options including bracket, ceiling, wall and pole mounting. Optional microwave motion sensor for occupancy control.

Features

• Certified for explosive atmospheres: ATEX, IECEx and UL listings for relevant zones and groups.
• High-efficiency Philips Lumileds LEDs delivering 13,000 lm at 140 lm/W.
• Multiple beam angles (30°, 60°, 90°, 120°) and tunable colour temperature range 2700K–6500K.
• Durable copper-free aluminium housing with tempered glass; IP66 and IK08 (IK10 with wire guard).
• Wide input voltage options (AC100–277V or AC220–480V) and power factor >0.95.

Product Specifications (full table)

• Product SKU: JNHB-ATEX-GSeries2 (100W)
• Power Consumption: 100 W
• Total Lumen Output: 13,000 lm
• Luminous Efficacy: 140 lm/W
• LED Type: Philips Lumileds
• Light Color / CCT: 2700K–6500K
• Input Voltage: AC100–277V or AC220–480V
• Input Frequency: 50/60 Hz
• Power Factor: >0.95
• IP Rating: IP66
• IK Rating: IK08 (glass cover); IK10 with wire guard
• Housing Material: Copper-free aluminium; tempered glass
• Housing Colour: Grey
• Color Rendering Index (CRI): >70
• Beam Angles: 30°, 60°, 90°, 120°
• Dimming Capability: Non-dimmable
• Certifications: ATEX II 3 G Ex xR IIC T6...T4 Gc; II 2 D Ex tb IIIC T80°C...T130°C Db; IECEx equivalent; UL listings; RETILAP Esquema 5
• Temperature Class: T6
• Gas Group: IIC
• Protection Type: Ex eb mb
• Zone Classification: Zone 1 & 2
• Working Temperature Range: -20°C to +45°C
• Working Humidity Range: 10–95% RH
• Lifespan: 80,000 hours
• Warranty Period: 5 years
• Fixture Shape: Round
• Fixture Dimensions (HxWxL): 228 × 270 × 429 mm (product dims approx. 228.5 × 270 × 429.3 mm)
• Net Weight: 12.6 kg

Packaging & Shipping

• Product Dimensions (mm): 228.5 × 270 × 429.3
• Net Weight (kg): 12.6
• Export Carton Dimensions (mm): 400 × 480 × 300
• Products per Carton: 1
• Export Carton Gross Weight (kg): 15

Technical specifications

• Mounting options: bracket, ceiling, wall, pole
• Optional accessories: microwave motion sensor, wire guard
• Operating environment: Hazardous locations, industrial sites, offshore platforms
• Installation notes: Follow ATEX/IECEx installation standards and local electrical codes
• Handling: Suitable for continuous operation; ensure proper earthing and protection against mechanical impact
