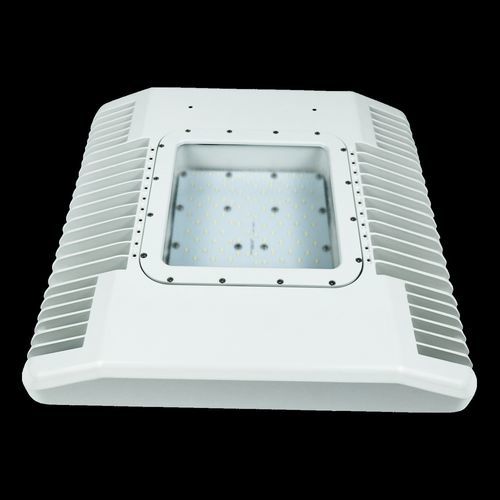

Terminal ATEX lighting JN-C-ATEX-Canopy

for ships

Overview
ATEX-certified explosion-proof LED canopy luminaire suitable for hazardous areas (Zone 1 & 2), offering selectable color temperature and robust IP66 protection.

Short description
Available mounting methods: stanchion mounting, pendant mounting. Typical applications: fuel stations, chemical plants, loading bays, offshore and industrial canopies.

Features

• Selectable color temperature 2200K–7000K
• Philips Lumileds LEDs, luminous efficacy 140 lm/W
• High ingress protection IP66 and IK09 (IK10 with wire guard)
• ATEX, IECEx, UL and RETILAP certifications for hazardous locations
• Operating range: -20°C to +45°C; lifespan ~80,000 hours

Product Specifications
Product SKU: JN-C-ATEX-CanopySeries (100W)
Power Consumption: 100 W
Input Voltage: 100-277VAC; 50/60Hz
Light Color: 2200K–7000K
LED Type: Philips Lumileds
Total Lumens Output: 13,000 lm
Luminous Efficacy: 140 lm/W
Power Factor: >0.95
IK Rating: IK09 (IK10 with wire guard)
Housing Colour: Off-white
Housing Material: Copper-free aluminium, tempered glass
IP Rating: IP66
CRI: >70
Beam Angle: 120°
Dimming: Non-dimmable
ATEX: II2 G Ex eb op is IIC T5/T6 GC, II2 D Ex op is tb IIIC T80°C Db
IECEx: Ex ec op is IIC T6/T5/T4/T3 Gc, Ex op is tb IIIC T80°C/T95°C/T130°C/T195°C Db
UL: Class I Division 2; Class II Division 1 & 2; Class III
Retilap: Esquema 5 RETILAP
Zone Classification: Zone 1 & 2
Temperature Class: T6
Gas Group: IIC
Lifespan: 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 94.6×270×385 mm
Net Weight: 4 kg
Export Carton Dimensions (mm): 470×470×120 mm
Products per Carton: 1
Export Carton Gross Weight: 9 kg

Additional information (attributes)

• Power (W): 100
• Voltage: 100-277VAC; 50/60Hz
• Input Frequency: 50/60Hz
• Lumens: 13,000 lm
• Efficacy: 140 lm/W
• Power Factor: >0.95
• IP Rating: IP66
• Housing: Copper-free aluminium + tempered glass
• Warranty: 5 years

Technical specifications
Fixture Shape: Square
Fixture Dimensions (H×W×L): 94×270×385 mm
Net Weight (kg): 4 kg
Working Humidity Range: 10-95% RH
Working Temperature Range: -20°C to +45°C
