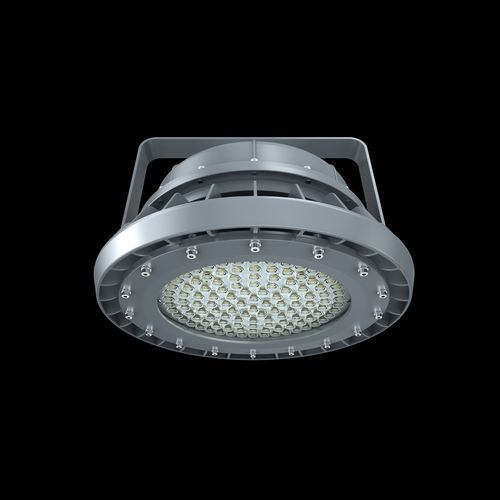

Security light JN-HB-ATEX-BSeries3

emergencyfor hostile environmentsmarine

Short description
ATEX-certified explosion-proof LED luminaire for hazardous zones (Zone 1 & 2). Available with optional emergency back-up battery (3 hours). Designed for industrial installations requiring high ingress protection and multiple global certifications.

Available mounting methods

• Ceiling mounting
• Wall mounting
• Hook pendant
• Pole pendant
• Ceiling mounting via opening the LED driver box
• Arm mounting via opening the LED driver box
• Stanchion mounting

Features / Highlights

• ATEX, IECEx and multiple international certifications for operation in hazardous areas
• Ingress protection IP67 for dust-tight and temporary immersion resistance
• Selectable beam angles: 30°, 60°, 90°, 120° to suit different lighting layouts
• Wide color temperature range: 2200K–7000K for process, ambient or task lighting
• High luminous output: 14,000 lm at 100 W; luminous efficacy approx. 140 lm/W
• Dimming capability: 0–10V for integration with control systems

Product Specifications
Product SKU: JN-HB-ATEX-BSeries3 (100W)
Power Consumption: 100 W
Input Voltage: 200–250V AC (Zone 1,2); 120–277 / 277–480 VAC (North America)
Input Frequency: 50 / 60 Hz
Light Color: 2200K–7000K
LED Type: SMD
Total Lumen Output: 14,000 lm
Luminous Efficacy (lm/W): 140
Power Factor: >0.95
IK Impact Rating: IK08 (glass cover); IK10 with wire guard
Housing Colour: Grey
Housing Material: Copper-free aluminium
Warranty Period: 5 years
IP Rating: IP67
Color Rendering Index (CRI): >70
Beam Angle: 30°, 60°, 90°, 120°
Dimming: 0–10V
ATEX Standard: II 2 G Ex eb mb IIC T6...T4 Gb II 2 D Ex tb IIIC T80°C...T100°C Db II 3 G Ex ec IIC T6...T3 Gc II 2 D Ex tb IIIC T85℃...T103℃ Db
IECEx Standard: Ex eb mb IIC T6...T4 Gb Ex tb IIIC T80°C...T100°C Db Ex ec IIC T6...T3 Gc Ex tb IIIC T85°C...T100°C Db
UL Standard: Class I, Division 2, Groups A,B,C,D; Class II Division 1 & 2; Class III
Retilap Standard: Esquema 5 RETILAP
Other Standards: UL1598, UL1598A, UL924, ETL, DLC, ABS, NSF, CB
Fixture Shape: Round
Dimensions (HxWxL): 176 × 270 × 370 mm
Net Weight: 8.2 kg
Temperature Class: T6
Gas Group: IIC
Protection Type: Ex eb mb
Zone Classification: Zone 1 & 2
Operating Temperature: -20°C to +45°C
Operating Humidity: 10–95% RH
Lifespan: 80,000 hours

Packaging & Shipping
Product Dimensions (mm): 176 × 270 × 370 mm
Net Weight (kg): 8.2 kg
Export Carton Dimensions (mm): 480 × 460 × 265 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 10.5 kg

Technical specifications

• Power: 100 W
• Lumens: 14,000 lm
• Efficacy: 140 lm/W
• Input: 200–250V AC (Zone 1,2); 120–277 / 277–480 VAC (NA)
• Frequency: 50 / 60 Hz
• Color Temperature: 2200K–7000K
• LED Type: SMD
• IP Rating: IP67
• IK Rating: IK08 (glass), IK10 with wire guard
• Material: Copper-free aluminium housing
• Weight: 8.2 kg
• Dimensions (HxWxL): 176 × 270 × 370 mm
• Dimming: 0–10V
• Operating Temp: -20°C to +45°C
• Lifespan: 80,000 hours
• Certifications: ATEX, IECEx, UL, RETILAP (Esquema 5), ETL, DLC, ABS, NSF, CB
