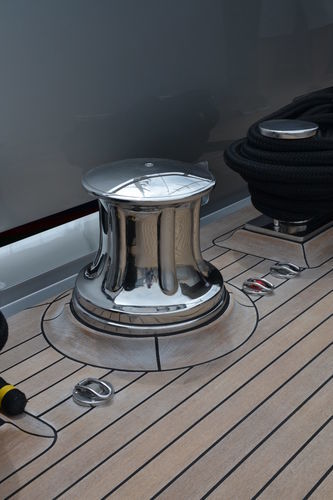

Boat capstan NC-560

hydraulicstainless steel

Description

• Stainless steel mooring winch AISI 316.
• With different motor options, it is recommended for boats up to 100m.
• Available with 230V, 400V, or hydraulic motorization.

Main Technical Features
ENGINE POWER | SUPPLY VOLTAGE | MAX INSTANTANEOUS PULL | WORKING LOAD AT LIFTING | RECOVERY SPEED UNDER LOAD
18500W | 230V/400V | 15866 Kg | 7933 Kg | 13 mt/min
22000W | 230V/400V | 18851 Kg | 9425 Kg | 13 mt/min
HY | N/A | 9425 Kg | 9425 Kg | 13 mt/min

Main Dimensions (mm)
A: 560
B: 470
C: 460
D: min 500
E: 560
F: 1060
NOTE: all measurements are in mm

Features / Technical Specifications

• Structure in stainless steel AISI 316
• Available motorization: 230V, 400V, hydraulic
• Recommended for boats up to 100 meters
• Engine power: 18500W / 22000W / HY
• Supply voltage: 230V/400V/N.A.
• Max instantaneous pull: 15866 Kg / 18851 Kg / 9425 Kg
• Working load at lifting: 7933 Kg / 9425 Kg / 9425 Kg
• Recovery speed under load: 13 mt/min
• Main dimensions: A=560mm, B=470mm, C=460mm, D=min 500mm, E=560mm, F=1060mm
