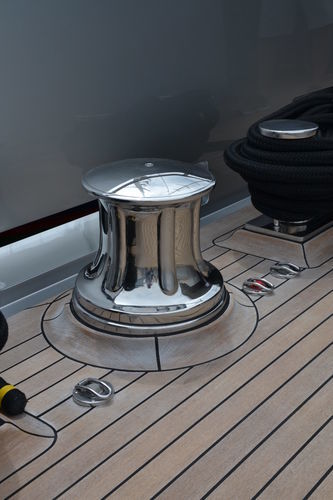

Boat capstan NC-500

hydraulicstainless steel

Description
Stainless steel AISI 316 winches. With different motor options, they are recommended for boats up to 80m. Available with 230V, 400V, or hydraulic motorization.

Main Technical Features

• Motor Power: 7500W to 18500W
• Voltage: 230V/400V
• Maximum Instantaneous Pull: 7075 Kg to 15866 Kg
• Working Load at Lift: 3537 Kg to 7933 Kg
• Recovery Speed at Load: 12 mt/min to 13 mt/min

Main Dimensions

• A: 500 mm
• B: 400 mm
• C: 440 mm
• D: min 400 mm
• E: 540 mm
• F: 900 mm

NOTE: All measurements are in mm

Features / Technical Specifications

• Material: Stainless Steel AISI 316
• Available Motorization: 230V, 400V, hydraulic
• Recommended for boats up to 80m
