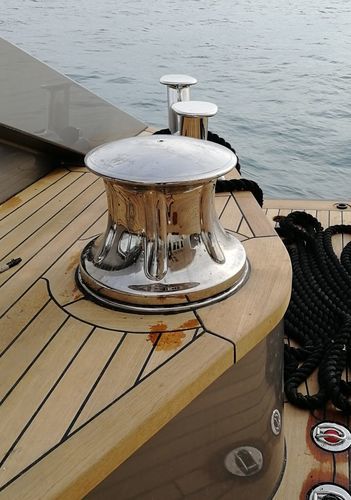

Boat capstan NC-440

hydraulicstainless steel

Description
Stainless steel mooring winches made of AISI 316. Available with different motor options, they are recommended for boats up to 80m. Motorization options include 230V, 400V, or hydraulic.

Technical Specifications (Table)
MOTOR POWER | SUPPLY VOLTAGE | MAX INSTANTANEOUS PULL | WORKING LOAD AT LIFTING | RECOVERY SPEED UNDER LOAD
7500W | 230V/400V | 7075 Kg | 3537 Kg | 12 m/min
9200W | 230V/400V | 9056 Kg | 4528 Kg | 12 m/min
11000W | 230V/400V | 10827 Kg | 5413 Kg | 12 m/min
15000W | 230V/400V | 14765 Kg | 7382 Kg | 12 m/min
18500W | 230V/400V | 15866 Kg | 7933 Kg | 13 m/min
HY1 | N/A | 4528 Kg | 4528 Kg | 12 m/min
HY2 | N/A | 9425 Kg | 9425 Kg | 13 m/min

Dimensions (Table)
A | 440
B | 290
C | 385
D | min 300
E | 511
F | 830
NOTE: All measurements are in mm

Features / Technical Specifications

• Material: Stainless steel AISI 316
• Available motor options: 230V, 400V, hydraulic
• Recommended for boats up to 80 meters
