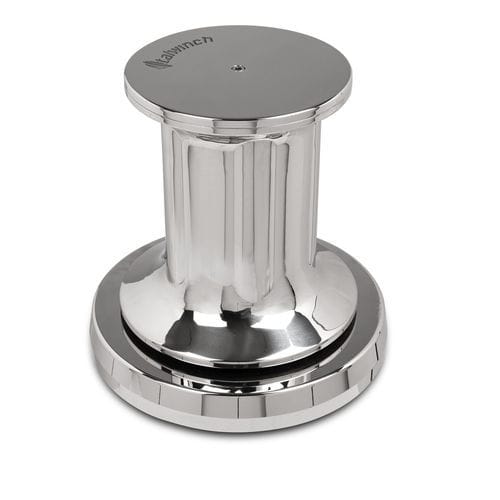

Boat capstan NC-300B

hydraulicstainless steel

Description
Stainless steel mooring winch AISI 316. With different motor options, it is recommended for boats up to 50m. Available with 230V, 400V, or hydraulic motorization.

Features
MOTOR POWER | SUPPLY VOLTAGE | MAX INSTANTANEOUS PULL | WORK LOAD AT LIFTING | RECOVERY SPEED UNDER LOAD | WEIGHT
3500W | 24V | 3000 Kg | 1100 Kg | 13 mt/min | from 140 to 190 Kg
3000W | 230V/400V | 3100 Kg | 1250 Kg | 12 mt/min | from 140 to 190 Kg
4000W | 230V/400V | 4200 Kg | 1700 Kg | 12 mt/min | from 140 to 190 Kg
HY | N/A | 3000 Kg | 3000 Kg | 12 mt/min | from 140 to 190 Kg

Main Dimensions (3500 DC)
A: 330
B: 180
C: 316
D: 120/170
E: 470
F: 528

Main Dimensions (3000 AC)
A: 330
B: 180
C: 316
D: max 150
E: 550
F: 627

Main Dimensions (4000 AC)
A: 330
B: 180
C: 316
D: max 150
E: 550
F: 651

Main Dimensions (HY)
A: 330
B: 180
C: 316
D: max 150
E: 550
F: 365

Note
All dimensions are in mm

Technical Specifications

• Material: Stainless steel AISI 316
• Available motor options: 24V DC, 230V/400V AC, Hydraulic
• Motor power: 3000W, 3500W, 4000W, HY
• Max instantaneous pull: 3000 Kg, 3100 Kg, 4200 Kg
• Work load at lifting: 1100 Kg, 1250 Kg, 1700 Kg, 3000 Kg
• Recovery speed under load: 12-13 mt/min
• Weight: from 140 to 190 Kg
• Recommended for boats up to 50m
