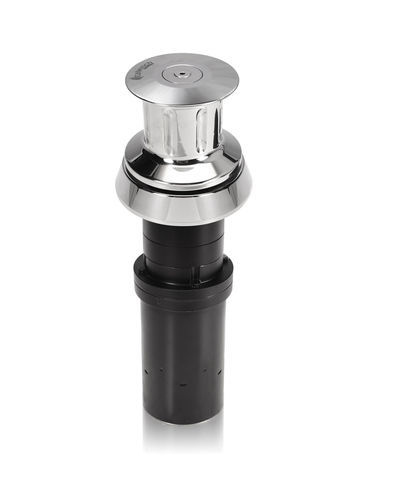

Boat capstan Nestor VX

stainless steel

Description
The Nestor VX is the new AISI 316 stainless steel mooring winch, easy to install thanks to the EASY FIT system. It is recommended for boats up to 13m. Available with 12V or 24V motors.

Features
MOTOR POWER | SUPPLY VOLTAGE | MAX INSTANTANEOUS PULL | WORKING LOAD AT LIFTING | RECOVERY SPEED UNDER LOAD | AVERAGE CONSUMPTION | WEIGHT
800W | 12V | 800 Kg | 100 Kg | 25 mt/min | 90 A | 10.5 Kg
800W | 24V | 810 Kg | 100 Kg | 25 mt/min | 45 A | 10.5 Kg

Dimensions (mm)
A | 118
B | 145
C | 20
D | 237
E | 78

Note
All measurements are in mm

Technical Specifications

• AISI 316 stainless steel structure
• EASY FIT installation system
• Available motors: 12V or 24V
• Recommended for boats up to 13 meters
• Weight: 10.5 Kg
• Motor power: 800W
• Max instantaneous pull: 800 Kg (12V), 810 Kg (24V)
• Working load at lifting: 100 Kg
• Recovery speed under load: 25 mt/min
• Average consumption: 90 A (12V), 45 A (24V)
