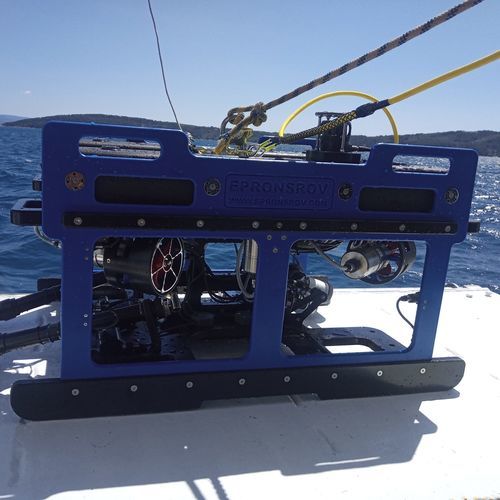

Intervention ROV ALPHAROV PROF D500

observationdeep waterportable

Product Overview

ALPHAROV D500 is a professional remotely operated vehicle (ROV) designed for underwater applications. The model is adapted for various applications and features a robust construction suitable for deep water operations.

• Working depth up to 500 meters
• Tether length: 500 meters (up to 5000 meters optional)
• Front: Color Full HD and B/W cameras
• Rear: Additional color/BW camera Full HD 1080P 2MP
• Live video recording at the control case with Full HD 1920×1080 – 60 fps quality
• 7 Brushless thrusters: 4 Horizontal; 2 Vertical; 1 Lateral
• Vectored thrusters configuration available

Main Features

• Depth range: Up to 500 meters
• ROV Weight in air: ≈ 75 Kg
• ROV Dimensions: L 940 x W 600 x H 530 (mm)
• With manipulator: L 1000 x W 600 x H 530 (mm). Fit for pipes from Ø 500 mm
• Payload: up to 10 kg

Power Requirements

• (Not include accessories)
• Single phase 220 – 240 VAC
• 50 Hz
• Up to 5000 Watt
• Tether Voltage: up to 900 VDC

ROV Construction

Plastic, Stainless steel, Anodized Aluminum

Control Case

Dimensions: HPRC Case

L 590 x W 525 x H 225 (mm)

Weight about 18.5 kg

Includes: Main power input, Cable (tether) input, 1 HDMI Video out, 3 USB connections, 1 USB Hand control Joystick, 24 Inch FHD Monitor

Camera System

• Front camera: SONY Color camera, Sensitivity up to 0.1 Lux, Full HD Tilt 170 degree, Wide View Angle, Auto Focus, Zoom
• Aft camera: 1 Full HD Tilt 170 degree SONY Color camera, Wide View Angle

Propulsion

• 7 thruster’s configuration: 4 horizontal/2 vertical/1 lateral
• Vectored configuration available
• Motor Type: Brushless
• Thrust: 8 Kg per thruster
• ROV Forward speed: up to 5.83 Knots (3 m/sec)

Sensors

• Depth Sensor
• 3D Gyro Compass
• Water Temperature
• System Voltage and Amperage

Cable (Tether)

• Cable type and length: about 9.8 mm in diameter, Neutral buoyancy, 500 Meters on the reel with slip ring (Up to 5000 meters)
• Cable reel: Metal cable reel, L650 mm-W500 mm-H500 mm
• Connectors type ROV-Cable: AR Dry connector

Control Functions

Autoheading, autodepth and stabilization

Lighting

Forward 6 pcs dimming LED (about 6000 Lumen in total) lights

Video-overlay

Heading, date and time, tilt position, depth, thrusters power, water temperature

Optional: CP probe / Metal thickness data / GPS data

Live Video Recording

High-Performance Computer with video recorder and complete control software

Effortless Operation

All ALPHAROV models are operated with an easy to use digital joystick from the control case. The console is built in a professional Pelican case and contains all electronics for the remote control, power supply and video processing including video text overlay.

Additional Equipment and Accessories

You will find a wide range of additional equipment and accessories that can be adapted for your applications.

Note: Specifications and prices may be changed without prior notice.

Optional/Additional Equipment

• Round scan navigation sonar and side scan sonar
• Non Destructive Testing (NDT): Contact cathodic-protection probe, Ultrasonic Thickness Gauging system
• 2 Jaw open/close/360 rotation manipulator and 3/4/5 function manipulator
• Multibeam Sonar
• SONY Color camera 2MP 1080P, Rear camera (With two LED Lights) without tilt
• Manually adjustable 4 Laser pointers
• Acoustic positioning USBL system
• Doppler velocity log (DVL)
• LYYN HAWK portable or board integration kit

Characteristics / Technical Specifications

• Model: ALPHAROV D500
• Brand: EPRONS ROV
• Working depth: up to 500 meters
• Tether length: 500 meters (up to 5000 meters optional)
• Front and rear cameras: Full HD, SONY, 2MP, 1080P, Tilt 170
• Live video: Full HD 1920×1080 – 60 fps
• Thrusters: 7 (4 Horizontal, 2 Vertical, 1 Lateral), Brushless, 8 Kg per thruster
• Vectored configuration available
• ROV Weight in air: ≈ 75 Kg
• ROV Dimensions: L 940 x W 600 x H 530 (mm)
• With manipulator: L 1000 x W 600 x H 530 (mm)
• Payload: up to 10 kg
• Power: Single phase 220 – 240 VAC, 50 Hz, Up to 5000 Watt
• Tether Voltage: up to 900 VDC
• Construction: Plastic, Stainless steel, Anodized Aluminum
• Control case: L 590 x W 525 x H 225 (mm), 18.5 kg, 24 Inch FHD Monitor
• Sensors: Depth, 3D Gyro Compass, Water Temperature, System Voltage and Amperage
• Cable: 9.8 mm diameter, Neutral buoyancy, 500 m (up to 5000 m), Metal cable reel
• Lighting: 6 pcs dimming LED, ~6000 Lumen
• Control functions: Autoheading, autodepth, stabilization
• Video overlay: Heading, date/time, tilt, depth, thrusters power, water temperature
• Optional: CP probe, Metal thickness, GPS, Sonar, NDT, Manipulators, USBL, DVL, Laser pointers
