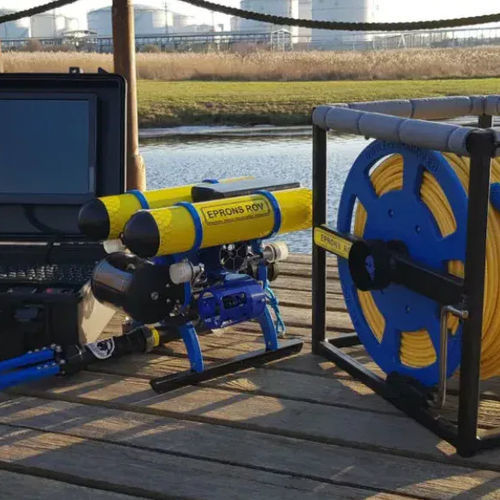

Observation ROV ALPHAROV D150

Power requirements (Not include accessories) Single phase 220 – 240 VAC 50 Hz Up to 700 Watt Tether Voltage: up to 300 VDC ROV Construction Plastic, Stainless steel, Anodized Aluminum Control case Dimensions: HPRC Case L 480 x W 385 x H 190 (mm) Weight about 12,5 kg Include: Main power input Cable (tether) input 1 HDMI Video out 3 USB connection 1 USB Hand control Joystick 15,6 Inch FHD Monitor Front camera SONY Color camera Sensitivity up to 0.01 Lux H.264 2MP 1080P Manually adjustable focus Tilt 170° degree View Angle: Propulsion 4 thruster’s configuration: (2 horizontal/1 vertical/1 lateral) Motor Type: Brushless Thrust: 2 Kg per thruster ROV Forward speed: up to 3,89 Knots (2 m/sec) Sensors Depth Sensor 3D Gyro Compass Water Temperature System Voltage and Amperage Cable (Tether) Cable type and length: about 8 mm in diameter Neutral buoyancy 150 Meters on the reel with slip ring Cable reel: Plastic cable reel 300 mm-400 mm-460 mm Connectors type ROV-Cable: Dry connector Control functions Autoheading and autodepth Lighting Forward 4 pcs dimming LED (about 4000 Lumen in total) lights Video-overlay Heading, date and time, tilt position, depth, thrusters power, Internal humidity, temperature Optional: CP probe / Metal thickness data / GPS data. Live video recording High-Performance Computer with video recorder and complete control software
