Intervention ROV ALPHAROV PROF D200

observation

Product Overview

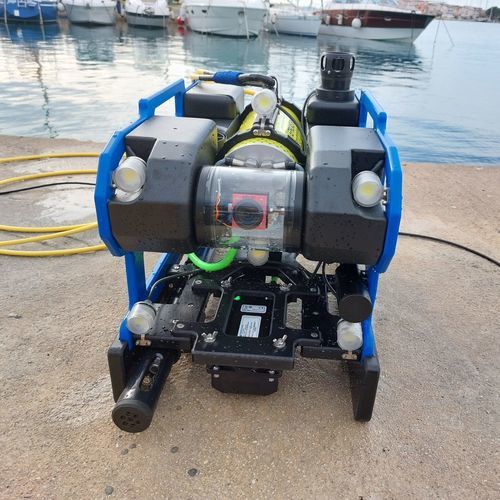

ALPHAROV D200 working depth till 200 meters. Tether length 200 meters (up to 600 m). Full HD 1080P 2MP Color camera. Live video recording at the control case with Full HD 1920×1080 – 60 fps quality. 5 Brushless thrusters: 2 Horizontal; 2 Vertical; 1 Lateral.


Base Model Features
ALPHAROV D200 model adapted for your applications


Main features

• Depth range: Up to 200 meters
• ROV Weight in air: ≈ 18 Kg
• ROV Dimensions: L 575 x W 346 x H 325 (mm)
• With manipulator: L 795 x W 346 x H 325 (mm). Fit for pipes from Ø 360 mm
• Payload: up to 5 kg

Power requirements

• (Not include accessories)
• Single phase 220 – 240 VAC
• 50 Hz
• Up to 1000 Watt
• Tether Voltage: up to 300 VDC

ROV Construction
Plastic, Stainless steel, Anodized Aluminum


Control case

• Dimensions: HPRC Case L 480 x W 385 x H 190 (mm)
• Weight about 17 kg
• Include: Main power input, Cable (tether) input, 1 HDMI Video out, 3 USB connection, 1 USB Hand control Joystick, 15.6 Inch FHD Monitor

Front camera

• SONY Color camera
• Sensitivity up to 0.01 Lux
• H.264 2MP 1080P
• Manually adjustable focus
• Tilt 170 degree
• View Angle: Wide

Propulsion

• 5 thruster’s configuration: (2 horizontal/2 vertical/1 lateral)
• Motor Type: Brushless
• Thrust: 3 Kg per thruster
• ROV Forward speed: up to 3.89 Knots (2 m/sec)

Sensors

• Depth Sensor
• 3D Gyro Compass
• Water Temperature
• System Voltage and Amperage

Cable (Tether)

• Cable type and length: about 8 mm in diameter, Neutral buoyancy, 200 Meters on the reel with slip ring
• Cable reel: Metal cable reel 400 mm-440 mm-460 mm
• Connectors type ROV-Cable: AR Dry connector

Control functions

• Autoheading, autodepth and stabilization

Lighting

• Forward 4 pcs dimming LED (about 4000 Lumen in total) lights

Video-overlay

• Heading, date and time, tilt position, depth, thrusters power, temperature
• Optional: CP probe / Metal thickness data / GPS data

Live video recording

• High-Performance Computer with video recorder and complete control software

Effortless Operation
All ALPHAROV models are operated with an easy to use digital joystick from the control case. The console is built in a professional Pelican case and contains all electronics for the remote control, power supply and video processing including video text overlay.


Additional equipment and accessories
You will find wide range of additional equipment and accessories that can be adapted for your applications. Note: Specifications and prices may be changed without prior notice.


Optional/Accessory Equipment

• Round scan navigation and side scan sonar
• Non Destructive Testing (NDT): Contact cathodic-protection probe, Ultrasonic Thickness Gauging system
• 2 Jaw open / close / 360 rotation manipulator
• Multibeam Sonar
• Rear camera (With two LED Lights) without tilt
• Manually adjustable 2 Laser pointers
• Acoustic positioning USBL system
• Doppler velocity log (DVL)
• LYYN HAWK portable or board integration kit

Overview video
The main differences between the models are the configuration of the thruster power, cable length, cameras, additional equipment integration possibilities and depth rating.


Characteristics / Technical Specifications

• Working depth: up to 200 meters
• Tether length: 200 meters (up to 600 m)
• Camera: Full HD 1080P 2MP Color, SONY, H.264, 0.01 Lux sensitivity, manually adjustable focus, 170 tilt, wide angle
• Live video recording: Full HD 1920×1080 – 60 fps
• Thrusters: 5 brushless (2 horizontal, 2 vertical, 1 lateral), 3 kg thrust per thruster
• ROV weight: ≈ 18 kg (air)
• ROV dimensions: L 575 x W 346 x H 325 mm (without manipulator), L 795 x W 346 x H 325 mm (with manipulator)
• Payload: up to 5 kg
• Power: 220–240 VAC, 50 Hz, up to 1000 W, Tether voltage up to 300 VDC
• Construction: Plastic, Stainless steel, Anodized Aluminum
• Control case: HPRC Case, L 480 x W 385 x H 190 mm, ~17 kg, 15.6 FHD monitor, HDMI, USB, joystick
• Sensors: Depth, 3D Gyro Compass, Water Temperature, System Voltage/Amperage
• Cable: 8 mm diameter, neutral buoyancy, 200 m on reel, AR Dry connector
• Lighting: 4x dimming LED, ~4000 lumen
• Control functions: Autoheading, autodepth, stabilization
• Video overlay: Heading, date/time, tilt, depth, thruster power, temperature, optional CP probe/metal thickness/GPS
• Optional: Sonar, NDT, manipulator, rear camera, laser pointers, USBL, DVL, LYYN HAWK kit
