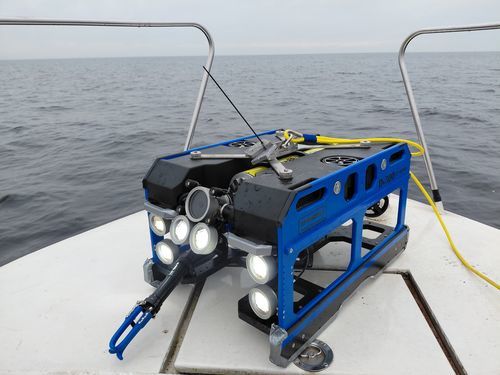

Intervention ROV ALPHAROV PROF D300

observationportable

Product Overview
ALPHAROV PROF D300 working depth till 300 meters. Tether length 300 meters (up to 1200 m).
Front: Color Full HD and B/W cameras. Rear: additional color/BW camera Full HD 1080P 2MP.
Live video recording at the control case with Full HD 1920×1080 – 60 fps quality.
7 Brushless thrusters: 4 Horizontal; 2 Vertical; 1 Lateral.
Vectored thrusters configuration available for this model.


Base Model Features
ALPHAROV D300 model adapted for your applications


Main features
Depth range: Up to 300 meters
ROV Weight in air: ≈ 35 Kg
ROV Dimensions: L 730 x W 500 x H 410 (mm).
With manipulator: L 870 x W 500 x H 410 (mm). Fit for pipes from Ø 600 mm
Payload: up to 7 kg


Power requirements
(Not include accessories)
Single phase 220 – 240 VAC
50 Hz
Up to 3000 Watt
Tether Voltage: up to 400 VDC


ROV Construction
Plastic, Stainless steel, Anodized Aluminum


Control case
Dimensions: HPRC Case L 620 x W 480 x H 280 (mm) Weight about 16 kg
Include: Main power input Cable (tether) input 1 HDMI Video out 3 USB connection 1 USB Hand control Joystick 15,6 Inch FHD Monitor


Front camera
SONY Full HD Color camera
Sensitivity up to 0.1 Lux
Tilt 170 degree
View Angle: Wide
Fixed focus


Propulsion
6 thruster’s configuration: (4 horizontal/2 vertical)
Vectored configuration
Motor Type: Brushless
Thrust: 6 Kg per thruster
ROV Forward speed: up to 5,83 Knots (3 m/sec)


Sensors
Depth Sensor
3D Gyro Compass
Water Temperature
System Voltage and Amperage


Cable (Tether)
Cable type and length: about 8 mm in diameter Neutral buoyancy 300 Meters on the reel with slip ring (Up to 1200 meters)
Cable reel: Metal cable reel 300 mm-400 mm-460 mm
Connectors type ROV-Cable: AR Dry connector


Control functions
Autoheading, autodepth and stabilization


Lighting
Forward 6 pcs dimming LED (about 6000 Lumen in total) lights


Video-overlay
Heading, date and time, tilt position, depth, thrusters power, Internal humidity, temperature
Optional: CP probe / Metal thickness data / GPS data.


Live video recording
High-Performance Computer with video recorder and complete control software


Effortless Operation
All ALPHAROV models are operated with an easy to use digital joystick from the control case. The console is built in a professional Pelican case and contains all electronics for the remote control, power supply and video processing including video text overlay.


Additional equipment and accessories
You will find wide range of additional equipment and accessories that can be adapted for your applications
Note: Specifications and prices may be changed without prior notice.


Optional/Accessory Equipment

• Round scan navigation and side scan sonars
• Non Destructive Testing (NDT): Contact cathodic-protection probe, Ultrasonic Thickness Gauging system
• 2 Jaw open / close / 360 rotation manipulator and 3 / 4 / 5 function manipulator
• Multibeam Sonar
• SONY Color camera 2MP 1080P, Rear camera (With two LED Lights) without tilt
• Manually adjustable 4 Laser pointers
• Acoustic positioning USBL system
• Doppler velocity log (DVL)
• LYYN HAWK portable or board integration kit

Characteristics / Technical Specifications

• Working depth: up to 300 meters
• Tether length: 300 meters (up to 1200 m)
• Front cameras: Color Full HD and B/W
• Rear camera: Color/BW Full HD 1080P 2MP
• Live video recording: Full HD 1920×1080 – 60 fps
• Thrusters: 7 Brushless (4 Horizontal; 2 Vertical; 1 Lateral)
• Vectored thrusters configuration available
• ROV Weight in air: ≈ 35 Kg
• ROV Dimensions: L 730 x W 500 x H 410 (mm)
• With manipulator: L 870 x W 500 x H 410 (mm)
• Payload: up to 7 kg
• Power: Single phase 220 – 240 VAC, 50 Hz, Up to 3000 Watt
• Tether Voltage: up to 400 VDC
• Construction: Plastic, Stainless steel, Anodized Aluminum
• Control case: L 620 x W 480 x H 280 (mm), Weight about 16 kg
• Front camera: SONY Full HD Color, Sensitivity up to 0.1 Lux, Tilt 170, Wide angle, Fixed focus
• Propulsion: 6 thruster’s configuration (4 horizontal/2 vertical), Vectored configuration, Brushless, 6 Kg per thruster, Forward speed up to 5.83 Knots (3 m/sec)
• Sensors: Depth, 3D Gyro Compass, Water Temperature, System Voltage and Amperage
• Cable: 8 mm diameter, Neutral buoyancy, 300 m on reel (up to 1200 m), Metal cable reel (300/400/460 mm), AR Dry connector
• Control: Autoheading, autodepth, stabilization
• Lighting: 6 dimming LED, ~6000 Lumen
• Video-overlay: Heading, date/time, tilt, depth, thrusters power, humidity, temperature, optional CP probe/metal thickness/GPS
• Live video: High-Performance Computer, video recorder, control software
