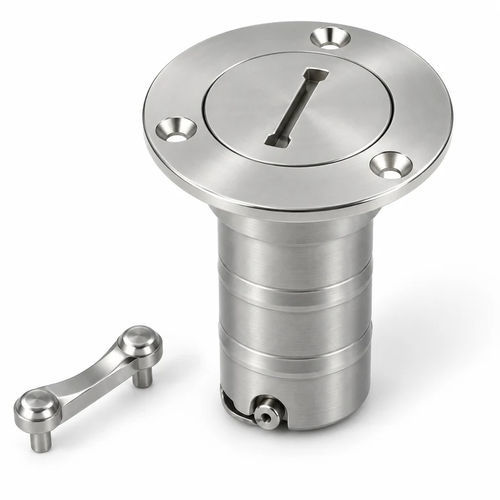

Locking deck fill

threadedstainless steel

Product
Deck fillers for water or diesel service. Select the appropriate variant according to the required connection diameter and tank service.

Material
AISI 316 / A4

Variants and dimensions (table)
Type | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | H (mm)
Water | 38.5 | 75 | 60 | 34 | 78
Diesel | 38.5 | 75 | 60 | 34 | 78
Water | 51.5 | 87 | 72 | 45 | 79
Diesel | 51.5 | 87 | 72 | 45 | 79

Documentation and supply
For supply confirmation, specify quantity, intended application and required documentation. Availability and configuration are confirmed on request.

Related accessories

• Tank breather vents
• Deck filler caps
• Self-locking sliding buckles

Characteristics / Technical specifications

• Material: AISI 316 / A4 (stainless steel)
• Intended service: water or diesel
• Available diameters and dimensions (per variant):
• Water – D: 38.5 mm · D1: 75 mm · D2: 60 mm · D3: 34 mm · H: 78 mm
• Diesel – D: 38.5 mm · D1: 75 mm · D2: 60 mm · D3: 34 mm · H: 78 mm
• Water – D: 51.5 mm · D1: 87 mm · D2: 72 mm · D3: 45 mm · H: 79 mm
• Diesel – D: 51.5 mm · D1: 87 mm · D2: 72 mm · D3: 45 mm · H: 79 mm
• Application: deck filler for tanks (select water or diesel service and matching connection diameter)
