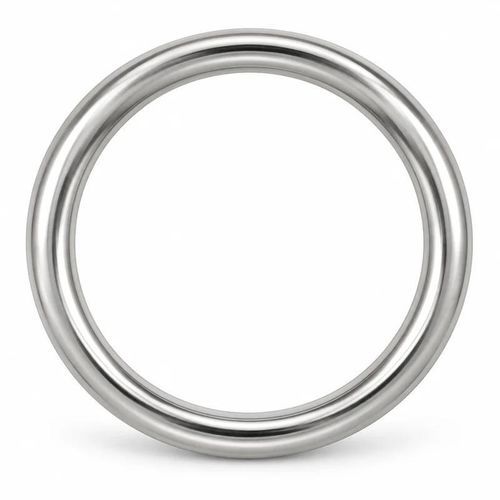

Sailboat ring

roundstainless steel

Product description
Polished welded rings for professional supply. Compare geometry, openings and mounting across the listed variants and include the installation requirements in your enquiry.

Material
AISI 316 / A4

Variants and dimensions — Polished welded rings (table)
D (mm) · L (mm) · Indicative catalogue working load (kg) · Breaking load (kg)
3 · 20 · 20 · 180
3 · 30 · 20 · 180
4 · 25 · 40 · 300
4 · 30 · 40 · 300
4 · 35 · 40 · 300
5 · 30 · 60 · 480
5 · 40 · 60 · 480
6 · 35 · 80 · 700
6 · 40 · 80 · 700
6 · 45 · 80 · 700
8 · 40 · 150 · 1250
8 · 50 · 150 · 1250
10 · 50 · 300 · 1950
10 · 60 · 300 · 1950
12 · 70 · 400 · 2750

Notes
Working load and breaking load are separate ratings. The values shown do not constitute lifting certification; verify the service conditions for the selected variant.

Documentation and supply
State the quantity, application and documentation requirements in your enquiry. Availability and configuration are confirmed for the individual requirement.

Related hardware (examples)

• Split rings
• Welded D-rings
• Screw-gate connecting links

Technical characteristics / specifications

• Denomination: Polished welded rings
• Product family: Rings, pad eyes & eye straps
• Material: AISI 316 / A4 (stainless steel)
• Available diameters (D): 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm
• Available lengths (L) vary by diameter from 20 mm up to 70 mm (see variants table above for each combination)
• Indicative catalogue working loads and breaking loads provided per variant (see table)
• Finish: Polished welded
• Intended for professional / marine supply and installation
