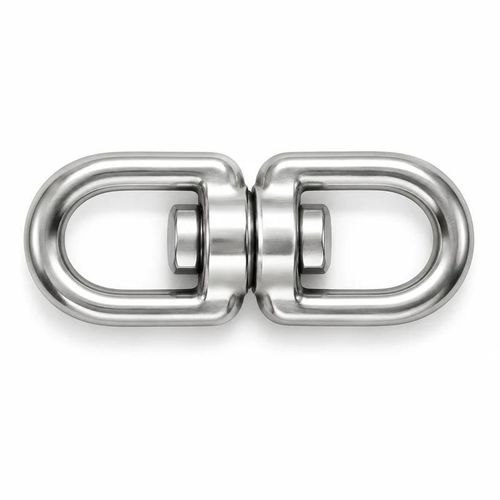

Eye swivel

Overview
Eye/eye swivels for professional and marine rigging. Compare opening, connections and dimensions across the listed variants. Suitable for deck fittings and general rigging; specify application and quantity when requesting a quote.

Material
AISI 316 / A4

Variants and dimensions
D (mm) | L (mm) | H (mm) | B (mm) | Indicative catalogue working load (kg) | Breaking load (kg)
5 | 60 | 13 | 13 | 100 | 650
6 | 65 | 15 | 15 | 150 | 900
8 | 90 | 22 | 20 | 300 | 650
10 | 115 | 27 | 24 | 500 | 2550
13 | 154 | 35 | 32 | 1000 | 3700
16 | 188 | 45 | 39 | 1500 | 6600

Working load notes
Working load and breaking load are distinct ratings. The values shown are indicative and do not constitute lifting certification; verify service conditions for the selected variant and consult applicable standards.

Documentation and supply
Availability and configuration are confirmed per individual requirement; state quantity, application and documentation needs (certificates, traceability, tests) when ordering.

Technical specifications

• Product: Eye/eye swivels
• Material: AISI 316 / A4
• Available diameters (D): 5 mm, 6 mm, 8 mm, 10 mm, 13 mm, 16 mm
• Corresponding dimensions (L, H, B) and indicative working/breaking loads as listed above
• Intended for marine rigging and professional applications; verify conditions for lifting
• Availability and configuration confirmed on request (RFQ)
