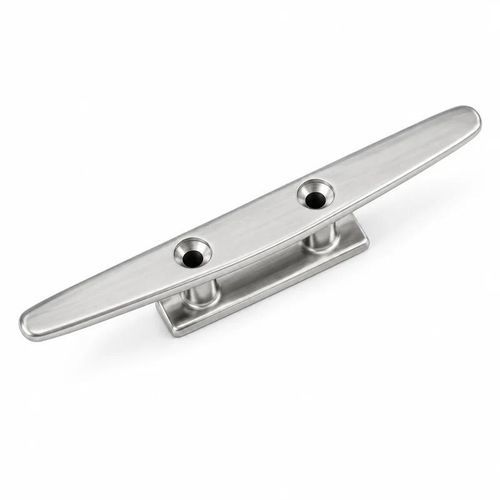

Marine mooring cleat

boatdoubleflat

Overview
Low-profile Bitte cleat with two mounting holes for professional marine deck fittings. Choose the correct variant based on mounting dimensions and fastenings; specify requirements in your request for quotation.

Material
AISI 316 / A4 stainless steel

Variants and dimensions (mm)
L (mm) | B (mm) | B1 (mm) | L1 (mm) | D5 (mm) | D6 (mm) | L2 (mm) | H (mm)
100 | 14 | 15 | 30 | 4.3 | 8 | 55 | 14
125 | 16 | 18 | 35 | 4.3 | 8 | 65 | 16
150 | 19 | 21 | 45 | 5.3 | 10 | 73 | 19
200 | 22 | 24 | 55 | 6.3 | 11.5 | 90 | 22
250 | 25 | 27 | 70 | 8.4 | 15 | 110 | 25

Documentation and supply
For supply verification indicate quantity, application and required documentation. Availability and configuration are confirmed per individual request.

Related accessories

• Micro cleats
• Low-profile cleat, four-hole variant
• Flag halyard cleats

Features / technical specifications

• Product family: Bitte low-profile cleat
• Model/variant: two-hole — see dimension table
• Material: AISI 316 (A4), marine-grade stainless steel
• Number of holes: two for fastening
• Application: mooring and deck equipment, professional marine supplies
• Available sizes: L = 100, 125, 150, 200, 250 mm
• Hole and thickness details: D5 and D6 as indicated per size
• Request for quotation (RFQ): select variant via dimensional specification; supplies and certificates provided on request
