Sailboat threaded eye bolt

Product overview

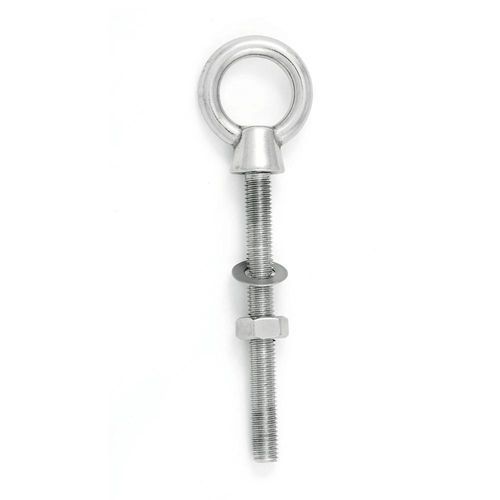

Long-shank eye bolt made from AISI 316 stainless steel. Catalogue design intended for technical and marine applications. Male (external) metric thread. Not intended or certified for lifting loads; W.L.L. not rated for lifting.

Key technical data
Type — Male thread
Standard / reference — Catalogue design
Material — AISI 316 stainless steel
Thread — Metric (external)
Grade — N/D
Temperature — N/D
Swivelling / pivoting — No
W.L.L. — Not rated for lifting

Technical drawing and dimensions
Illustrative technical drawing: front and side views. Dimension symbols: D1 = Nominal thread size (M…), D2 = Base diameter (mm), D3 = Internal eye diameter (mm), H = Eye and base height above the shank (mm), H1 = Base height (mm), K = Ring thickness (mm), L = Shank length below the base (mm). Drawings are illustrative and not to scale unless stated.

Variants and dimensions
Units: mm; weight in kg. N/D indicates value not documented. Representative dimensions per thread size:
M6 — D2 12.0 — D3 15.0 — L 60.0 — H 29.0 — H1 9.0 — K 5.0
M8 — D2 15.0 — D3 19.0 — L 80.0 — H 37.0 — H1 12.0 — K 6.0
M10 — D2 19.0 — D3 25.0 — L 100.0 — H 48.0 — H1 15.0 — K 8.0
M12 — D2 23.0 — D3 30.0 — L 120.0 — H 59.0 — H1 19.0 — K 10.0

Load conditions
Designed for technical and marine applications. Not intended for lifting; do not use for load-bearing lifting operations. W.L.L. not rated for lifting.

Materials and finishes
Material — AISI 316 stainless steel
Finish — To be confirmed for the selected variant

Documentation
Operating instructions — Available on request for the selected variant
Technical data sheet / certification — Variant-specific documentation on request
CAD / 3D — Availability to be confirmed

Characteristics / technical specifications

• Product type: Long-shank eye bolt with male thread
• Material: AISI 316 stainless steel
• Thread form: Metric (external)
• Catalogue design / reference
• Swivelling / pivoting: No
• W.L.L.: Not rated for lifting
• Available thread sizes: M6, M8, M10, M12
• Representative dimensions per thread size (D2, D3, L, H, H1, K) provided in variants table (mm)
• Weight and some technical fields marked N/D where not documented
• Finish and variant-specific documentation available on request
