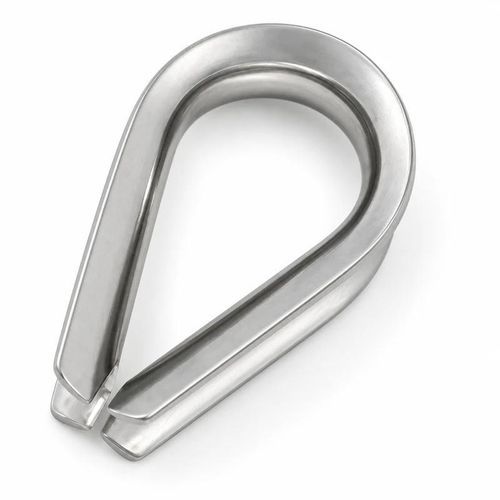

Mooring thimble

for standing riggingfor cablesfor decks

Product overview
Wire rope thimbles Redance manufactured in AISI 316 (A4) for professional supply. Choose the correct variant by matching the nominal wire diameter and the end-fitting geometry; variants and dimensions are listed below.

Material
AISI 316 / A4 (stainless steel)

Variants and dimensions
Ø (mm) — B (mm) — L (mm) — E (mm) — S (mm)
2 — 7 — 10 — 2 — 1
2.5 — 8 — 14 — 2.5 — 1
3 — 10 — 17 — 3 — 1
4 — 11 — 18 — 4 — 1
5 — 13 — 20 — 5.6 — 1.2
6 — 15 — 25 — 6.5 — 1.2
8 — 18 — 33 — 9 — 1.5
10 — 23 — 41 — 11 — 2
12 — 27 — 48 — 14 — 2
14 — 34 — 53 — 15 — 2.5
16 — 36 — 57 — 17 — 3
18 — 40 — 67 — 19 — 3
20 — 45 — 75 — 22 — 4
22 — 52 — 84 — 24 — 4
24 — 56 — 96 — 26 — 5

Documentation and supply
Specify required quantity, intended application (rigging, mooring, deck fittings, etc.) and any certification or documentation needed. Lead time, availability and any configuration options will be confirmed for each individual request.

Related hardware

• Crimping dies
• Crimping tools
• Hand swagers

Technical specifications

• Commercial name: Redance
• Product type: Stainless wire rope thimble
• Material: AISI 316 / A4 (stainless steel)
• Available nominal wire diameters (Ø): 2; 2.5; 3; 4; 5; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24 mm
• Dimensions provided per variant: B (mm), L (mm), E (mm), S (mm)
• Intended use: end-fitting for wire ropes; select according to wire diameter and end-fitting geometry; suitable for marine rigging and industrial applications
• Availability: configurable per individual requirement
