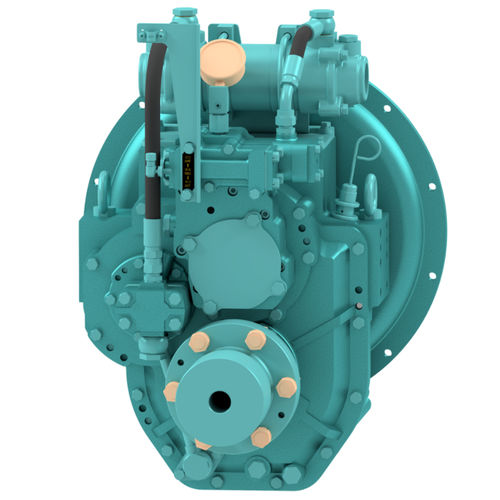

Marine reduction gearbox DMT95H
boatfishing boatpump

marine reduction gearbox
marine reduction gearbox
Add to favorites
Compare this product


Characteristics

Application domain
marine, boat, fishing boat
Applications
transmission, pump
Other characteristics
with hydraulic clutch
Power

Max.: 166 kW (225.7 hp)

Min.: 132 kW (179.5 hp)

Rotational speed

3,500 rpm (21,991 rad.min-1)

Description

– Marine reduction gearbox with hydraulic clutch. – Suitable for twin engines with the same reduction ratio as forward/reverse. – Design and strict quality management according to ISO9001 standards. – Use of seawater resistant castings. – Quiet operation with precise gearing. – Tapered roller bearing application considering maximum thrust. – Compact design, minimal appearance in its class. – Permanently available oil filter(metal) applied. – GO HOME(emergency bolt application) function. Apply to Marine : Fishing boat, Leisure boat, Cruise Industrial : Water Pump, Sand Pump Standard supply – Mechanical control valve – Cable bracket/clamp parts. – Oil cooler/cover – Companion flange/Reamer bolts – Bell housing(SAE1, 2, 3, 4) – Dual Stage coupling(14″, 11.5″) – Rubber Block Coupling(10″) – LIVE PTO Options – Electric control valve(12V, 24V optional) – Mechanical trolling valve – Mounting brackets(Flat Type, Customized) – Pump Mounting Kit (SAE A, B) – Class

Catalogs

DMT95H
DMT95H
2 Pages
