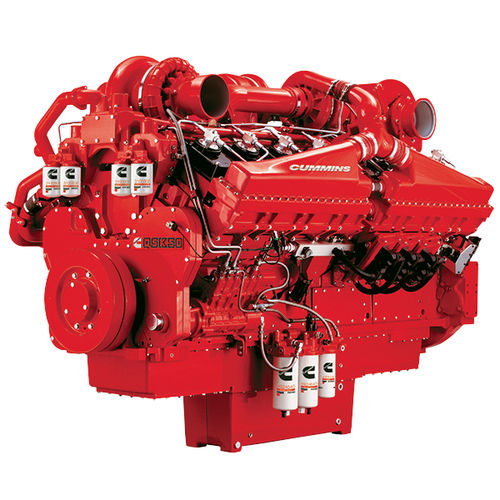

Inboard engine QSK50
propulsionauxiliarydiesel

inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard, propulsion, auxiliary
Power source
diesel
Market
boating, professional vessel
Technology
turbocharged, common-rail
Other characteristics
4-stroke
Pollution control standard
Tier 3, Tier 2
Power

Max.: 2,200 ch (2,200 hp)

Min.: 1,700 ch (1,700 hp)

Number of cylinders

16 unit

Engine speed

1,600 rpm, 1,800 rpm, 1,900 rpm (10,053 rad.min-1)

Bore

159 mm (6.3 in)

Racing

159 mm (6.3 in)

Length

2,780 mm (109 in)

Width

1,573 mm (62 in)

Height

2,232 mm (88 in)

Description

Overview: 1268-16414 kW | 1700-2200 hp Designed to withstand the challenging conditions commercial marine operators often face; this same reliable, durable power is now available for recreational boating applications, including super yachts and yacht support vessels Improved idle stability and reduced noise and vibration are a direct result of the Cummins Modular Common Rail fuel system In-cylinder technology to meet IMO Tier 2/3, EPA Tier 3 and EU Stg. 3a; platform for future emissions in the U.S. and globally Covered by a comprehensive one year warranty and backed by Cummins global service network Engine Design – Reliable base engine uses common components from the proven K19, K38 and K50 engines. A new cast-iron, ductile single-piece piston with nitride-coated rings and hardened cylinder liner provides excellent durability and long life Fuel System – Modular Common Rail Fuel System features a simplified design which provides constant high injection pressure regardless of engine speed or load condition. Benefits include low noise and vibration for quiet operation, idle stability and low-end torque Cooling System – Two-pump, two-loop, low temperature aftercooling maximizes efficiency and improves performance. Engine-mounted titanium plate heat exchanger provides superior durability with minimal maintenance requirements Exhaust System – Dry-shielded exhaust manifold and turbocharger. Vertical or horizontal exhaust connections available for installation flexibility Air System – Turbocharger optimized for vessel operating conditions and safety. Mounted or remote marine grade air cleaner with replaceable canister reduces maintenance cost
