Boat indicator PICO
leveltemperatureoil pressure

boat indicator
boat indicator
boat indicator
boat indicator
boat indicator
boat indicator
Add to favorites
Compare this product


Application domain
for boat
level, temperature, oil pressure, ammeter
Protection class
Power supply

Max.: 30 V

Min.: 12 V

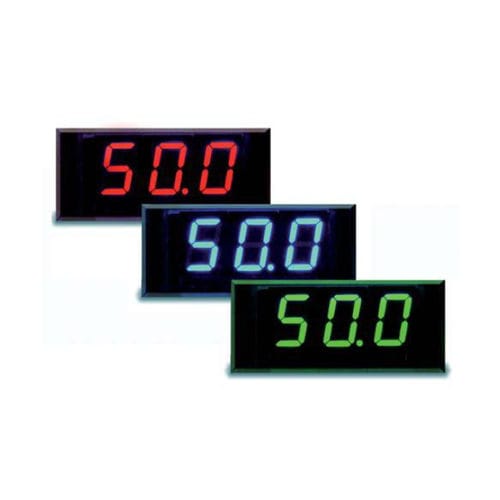

PICO, digital panel meters, red, green or blue Led 3 digit-display The PICO line is made of a range of digital indicators with a three-digit red, green or blue display. Reliable and accurate. Made for installation in control panels. They are particularly appreciated for the speed of installation and the excellent ratio between the size of the digits and the overall dimensions. Reading point: 999 digit • Display: 3 digit, 13 mm red Leds (green or blue on request) • Input in tension, current, temperature, level and pressure • Polarity: automatic, only minus sign (-) with Led • Decimal point: programmable • Overrange indication: with Led • Power supply: 10...30 Vdc / Vac • Connections: screws, on removable terminal block, sect. max 2.5 mm² • Power consumption: 1,8 VA max • Front protection class: IP54 • Dimensions: 24 (L) x 55 (H) x 53 mm (P) • Weight: ~ 60 grammi (DC)
