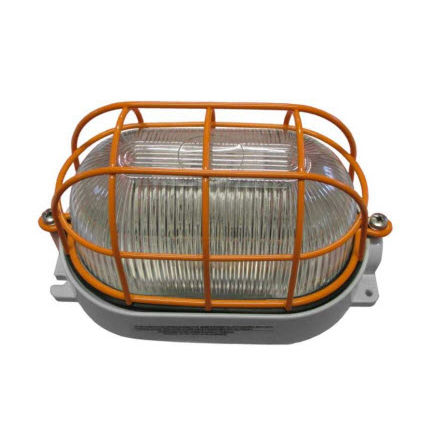

ATEX lighting LAX series

ATEX lighting
ATEX lighting
Add to favorites
Compare this product


Description

ATEX, Led lamp for hazardous areas, zones 2, 22, surface mount Waterproof led lamp in aluminium alloy, suitable for use in potentially explosive atmospheres as defined in ATEX 2014/34/EU. The body of the lamp is anti-corrosive and finished with a non-toxic, heat resistant anti-scratch polyester paint. The body colour is RAL 7035 grey, the diffuser is in prismatic tempered glass. The steel wire protective cage is RAL 2011 orange and is attached to the body by means of stainless steel screws, the seal is guaranteed by a reinforced gasket in anti-ageing elastomer. Supplied with an M20 input cable gland, complete with internal and external ground screws. Suitable for use in garages and engine rooms. • Aluminium alloy body • Tempered glass filter • Body colour: RAL 7035 grey • Protective cage colour: RAL 2011 orange • Emission angle: 120° • Neutral white light (4000°K) • Power supply: 12 o 24 Vdc • Protection class: IP65 • Operating temperature: -20…+40°C • Cable section max: 1.5 mm² • Light intensity: 140/170 lux at 1 m • Protected against power surges and polarity inversion • Power consumption: 6 W • Weight: ~ 830 g
