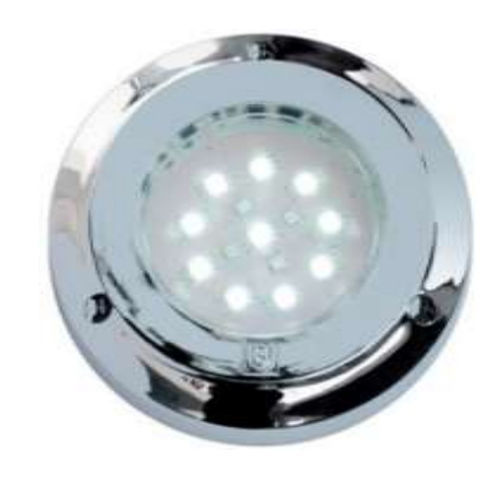

Indoor spotlight IRIS ANTIVANDAL
for boatscabinLED

indoor spotlight
indoor spotlight
indoor spotlight
Add to favorites
Compare this product


Characteristics

Type
indoor
Application domain
for boats
Applications
cabin
Light source
LED
Mounting
recessed, ceiling, wall
Material
polycarbonate

Description

Led downlight for indoor use, with emergency lighting, in anti-vandal execution Integrated emergency light with separate circuit. Surface/recess mountings. Suitable for lift cars (two are sufficient to illuminate a 1000 x 1300 mm surface in accordance with energy/safety regulations), goods lift, car lift, electric panels, elevator shafts and engine rooms. Elegant and strong, designed for application in harsh environments and public installations. It is fire resistant and shockproof and conforms to anti-vandal requirements (UNI EN81-71, category 2). Technical specifications Dimensions • Light source: Led • Body: polycarbonate • Frame: polycarbonate or plastic • Gloss finish: white, black or chrome (Opz.) • Installation: screw • Emission angle: 120° • Main light: 10 led (6 emergency led) • Colour temperature: neutral white (4000°K) • Power supply: 10…30 Vdc • Mounting: recessed, rear (wall/ceiling) • Cable length 50 cm • Protection class: IP68 front, IP40 rear • Light intensity: 65 lux at 1 m (13 lux emergency) • Protected against power surges • Power consumption: 5 W complete (1 W emergency) • Weight: ~ 100 g.
