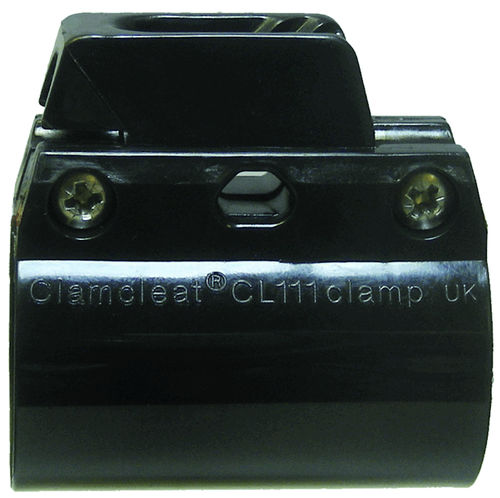

Boat clamcleat CL series

for sailing dinghieswith fairleadbuilt-in

Product description
Clamcleat insert cleats use a ridged 'V' groove to hold running lines securely while allowing immediate release with a short upward and backward pull. Certain models (CL712, CL175, CL176) are designed to snap-fit into plastic mouldings, combining the strength of alloy cleats with the cost advantages of moulded components. Suitable for small craft deck control, running rigging and applications where a compact, low-profile rope cleat is required.

Available variants

• CL243 — Clamcleat 6mm Insert Cleat, Black, Hole spacing 22 mm, Length 42 mm, Nylon, Rope 3–6 mm, Unit: EACH
• CL243S5 — Clamcleat 6mm Insert Cleat with Fairlead Silver, Black, Length 58 mm, Nylon, Rope 3–6 mm, Unit: EACH
• CL712 — Clamcleat 5mm Small Insert Cleat Silver, Silver, Hole spacing 11 mm, Length 28 mm, Aluminium, Rope 2–5 mm, Unit: EACH
• CL715 — Clamcleat 5mm Insert Cleat Silver, Silver, Hole spacing 12 mm, Length 9 mm, Aluminium, Rope 3–5 mm, Unit: EACH
• CL716 — Clamcleat 4mm Very Small Insert Cleat Silver, Silver, Hole spacing 11 mm, Length 24 mm, Aluminium, Rope 3–4 mm, Unit: EACH

Technical specifications

• Mechanism: ridged 'V' groove for firm hold and immediate release
• Snap-fit variants: CL712, CL175, CL176 designed for snap-fit into plastic mouldings
• Materials: Nylon; Aluminium
• Colour/Finish options: Black; Silver
• Hole spacing (mm): 11, 12, 22 (variant-dependent)
• Lengths (mm): 9, 24, 28, 42, 58 (variant-dependent)
• Rope diameter (mm): 2–6 (variant-dependent)
• Unit of measure: EACH
• Part numbers: CL243, CL243S5, CL712, CL715, CL716

Applications

• Deck control lines and running rigging on small craft and sailing dinghies
• OEM integration into moulded fittings using snap-fit models
• Where a compact, low-profile, easily released rope cleat is required

Ordering & compatibility

• Order by part number; units supplied as EACH
• Choose material and size according to rope diameter and mounting hole spacing
• Contact supplier for moulding dimensions and snap-fit integration details
