Sailboat clamcleat CL205

marinefor boatpolypropylene

Product overview
A ridged 'V' groove cleat that holds running and standing rope securely without moving parts, allowing immediate release by a short upward and backward pull. Designed for reliable rope control in marine and industrial applications up to 16 mm rope diameter.

Variants

• CL205 | Clamcleat 16mm Major Black | Unit: EACH | Colour/Finish: Black | Hole Spacing: 36 mm | Length: 122 mm | Material: Nylon | Rope Diameter: 10–16 mm | Width: 95 mm
• CL220 | Clamcleat 16mm Racing Major Silver | Unit: EACH | Colour/Finish: Silver | Hole Spacing: 37 mm | Length: 118 mm | Material: Aluminium | Rope Diameter: 12–16 mm | Width: 95 mm

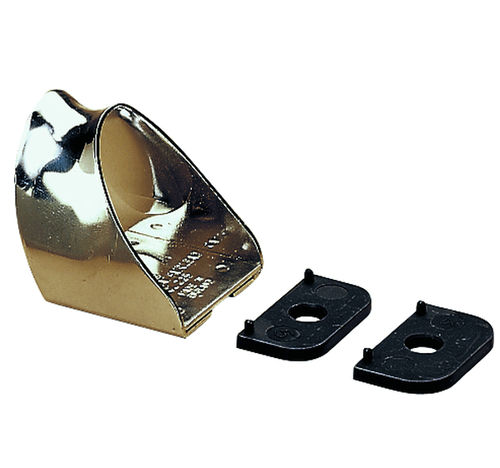

• CL2245 | Clamcleat Stainless Fairlead for 205, 220 & 240 | Unit: EACH | Colour/Finish: Silver | Hole Spacing: 41 mm | Length: 50 mm | Material: Stainless Steel | Rope Diameter: (not specified) | Width: (not specified)
• CL805 | Clamcleat Tapered Pad for CL205 & CL220 | Unit: EACH | Colour/Finish: Black | Hole Spacing: 45 mm | Length: 131 mm | Material: Polypropylene | Rope Diameter: (not specified) | Width: (not specified)

Technical specifications

• Function: Ridged 'V' groove secures rope firmly while permitting rapid manual release with a short upward and backward pull.
• Suitable rope diameters: CL205 – 10–16 mm; CL220 – 12–16 mm.
• Materials by variant: CL205 – Nylon; CL220 – Aluminium; CL2245 – Stainless Steel; CL805 – Polypropylene.
• Colour/finish by variant: CL205 – Black; CL220 – Silver; CL2245 – Silver; CL805 – Black.
• Hole spacing: CL205 – 36 mm; CL220 – 37 mm; CL2245 – 41 mm; CL805 – 45 mm.
• Length: CL205 – 122 mm; CL220 – 118 mm; CL2245 – 50 mm; CL805 – 131 mm.
• Width: CL205 – 95 mm; CL220 – 95 mm; CL2245 – (not specified); CL805 – (not specified).
• Unit of sale: EACH (individual item).

Applications

• Intended for secure tensioning and quick release of control lines, rigging and mooring lines in commercial, leisure and industrial settings.

Installation & ordering

• Mount using specified hole spacing; check variant dimensions to match deck or bulkhead layout.
• Order by part number (CL205, CL220, CL2245, CL805). Supplied individually (EACH).
