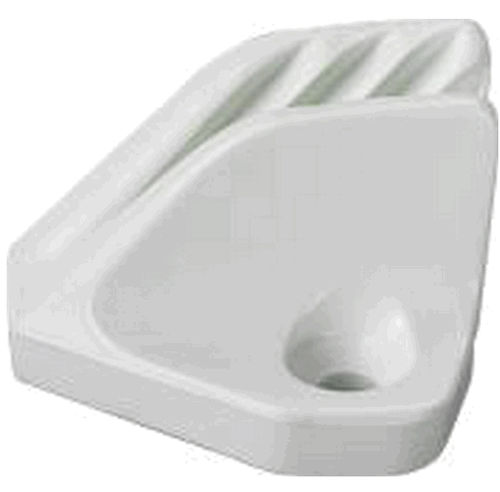

Marine clamcleat CL209

nauticalboatfor sailboats

Product overview
A ridged V-groove design secures ropes firmly without movable parts, allowing quick, positive hold and immediate release by a short upward and backward pull. Suitable for control lines, sheets and halyards on small craft and deck applications where fast, repeatable cleating is required.

Variants

• CL209 — Clamcleat 8mm Midi Black: Colour/Finish: Black; Hole Spacing: 19 MM; Length: 73 MM; Material: Nylon; Rope Diameter: 4-8 MM; Width: 55 MM; Unit of Measure: EACH
• CL215 — Clamcleat 8mm Side-Fixing Midi Black: Colour/Finish: Black; Hole Spacing: 43 MM; Length: 41 MM; Material: Nylon; Rope Diameter: 4-8 MM; Width: 27 MM; Unit of Measure: EACH
• CL215W — Clamcleat 8mm Side-Fixing Midi White: Colour/Finish: White; Hole Spacing: 43 MM; Length: 41 MM; Material: Nylon; Rope Diameter: 4-8 MM; Width: 27 MM; Unit of Measure: EACH
• CL231 — Clamcleat 8mm Midi with Integral Fairlead Black: Colour/Finish: Black; Hole Spacing: 22 MM; Length: 88 MM; Material: Nylon; Rope Diameter: 4-8 MM; Width: 54 MM; Unit of Measure: EACH
• CL254 — Clamcleat 8mm Racing Midi Silver: Colour/Finish: Silver; Hole Spacing: 18 MM; Length: 71 MM; Material: Aluminium; Rope Diameter: 4-8 MM; Width: 55 MM; Unit of Measure: EACH
• CL254AN — Clamcleat 8mm Racing Midi Hard Anodised: Colour/Finish: Hard Anodised; Hole Spacing: 18 MM; Length: 71 MM; Material: Aluminium; Rope Diameter: 4-8 MM; Width: 55 MM; Unit of Measure: EACH
• CL803 — Clamcleat Tapered Pad for CL209 & CL254: Colour/Finish: Black; Hole Spacing: 24 MM; Length: 79 MM; Material: Polypropylene; Unit of Measure: EACH

Technical specifications

• Suitable rope diameter: 4-8 MM
• Materials: Nylon, Aluminium, Polypropylene
• Available finishes: Black, White, Silver, Hard Anodised
• Observed hole spacing options: 18 MM, 19 MM, 22 MM, 24 MM, 43 MM
• Observed lengths: 41 MM, 71 MM, 73 MM, 79 MM, 88 MM
• Observed widths: 27 MM, 54 MM, 55 MM
• Unit of sale: EACH
• Variants/Part numbers: CL209, CL215, CL215W, CL231, CL254, CL254AN, CL803

Applications

• Designed for deck lines, control sheets, halyards and trimming lines on small to medium craft
• Side-fixing and integral fairlead variants allow flush or guided installation depending on deck layout
• Racing aluminium versions provide reduced weight and improved wear resistance where anodised finishes are required

Installation & maintenance

• Mount using recommended hole centres matching variant hole spacing; secure with appropriate stainless fasteners
• Choose anodised aluminium or polypropylene pads where additional abrasion or corrosion resistance is needed
• Routine inspection of rope condition and fastener torque is recommended for safety-critical installations
