Dive compressor Super Silent TPS

breathing airpistongear

Overview

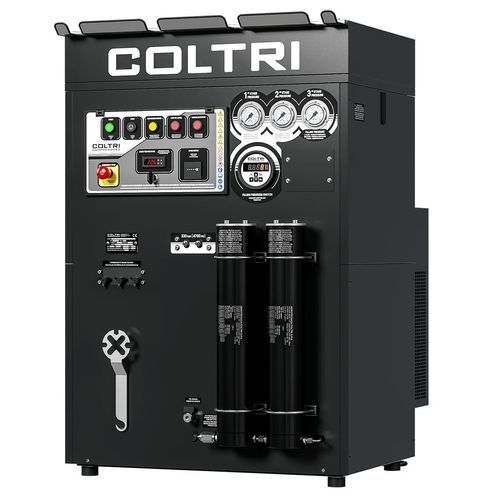

The Super Silent TPS is a Prime Line silenced high-pressure breathing-air compressor engineered for quiet operation, reliable breathing-air treatment and simplified maintenance. It integrates a 3-stage high-pressure pumping unit and a Hyperfilter purification system for delivery of breathing-quality air when original filter cartridges are installed.

Pumping unit

• 3-stage high-pressure pumping unit
• Aluminum monoblock construction
• Forced lubrication with low-pressure gear pump
• Suction filter: 10 µm
• Pipes, fittings and nuts in AISI 316 stainless steel
• Intermediate condensate separator after the second stage
• Double-acting high-pressure final condensate separators
• Safety valves after each compression stage
• High heat-dispersion die-cast aluminum cylinders with nicasil barrel coating
• Forged aluminum connecting rods
• Forged steel crankshaft
• Stainless steel second- and third-stage valves
• Heavy-duty roller bearings
• Hardened steel third stage with 5 segments made of special cast iron
• Second- and third-stage thrust pads to eliminate lateral piston forces
• Hyperfilter filter system

Electric motor
Single-phase or three-phase electric motor available on this model in the range 5.5–7.5 kW; the motor transmits motion to the pumping unit through a belt with a tilting motor carrier plate to maintain constant belt tension.

Hyperfilter purification system
The Hyperfilter is a two-cartridge high-capacity purification system in series: first a molecular sieve for moisture removal, second a molecular sieve combined with activated carbon for oil vapour and contaminant removal. The interstage separator maximizes moisture extraction. Filtering capacity (inlet air at 20°C and 200 bar): 3,050 m³.

Electrical cabinet

• ON/OFF switch with motor protection
• Electromechanical pressure switch that stops the compressor at final pressure
• Drainage of all separators between stages and of the final separator during operation
• Timer for automatic condensate drainage device
• Integrated no-load startup (automatic discharge at each shutdown)
• Condensate collection tank: 5 L (approx. 3 L usable) with silencer for environmentally friendly disposal
• Interstage pressure gauges to display operating pressures of individual stages

Frame
Silenced cab chassis designed for easy maintenance. Tilting motor carrier plate ensures constant V-belt tension. External oil level and drain; control console with interstage gauges; internal temperature indicator; presence and wrong-phase-sequence alarm; oil shortage alarm; run/stop and manual condensate drain controls. Frame made of steel with scratch-resistant powder coating (Black RAL 9005).

Standard equipment

• 2 cylinder connections selectable: DIN 232, DIN 300 or INT/YOKE 232 bar
• 2 filling hoses 1.2 m long
• Pressure holding valve
• Interstage control manometers
• Dual PED-certified Hyperfilter filter system
• Inside-cabin temperature automatic shutdown
• Automatic condensate drain
• Automatic rotation direction control
• Electronic pressure switch with automatic shutdown
• Oil level control with automatic shutdown
• Oil pump with filter and pressure gauge
• Automatic condensate drain with conveying system into a canister
• Frame color: Black RAL 9005

Compatible / optional accessories (examples)

• C-monitor
• Single pressure remote charging panel
• Double pressure remote charging panel
• Remote refill and charging panels with lever taps
• CO SafeGuard – Carbon Monoxide Analyzer
• ColTrimix
• Presec system
• Multigas Analysis System (CO + CO2 + H2O)
• Tornado chiller

Technical specifications

• Compression: 3-stage high-pressure pumping unit (aluminum monoblock)
• Motor power range available on this model: 5.5 – 7.5 kW
• Suction filter rating: 10 µm
• Piping and fittings: AISI 316 stainless steel
• Hyperfilter filtering capacity (20°C, 200 bar): 3,050 m³
• Condensate collection tank: 5 L (approx. 3 L usable)
• Frame finish: powder coated steel, RAL 9005
• Safety valves after each compression stage; interstage pressure gauges
• Automatic condensate drainage and conveying system into canister
• Available cylinder connections: DIN 232 / DIN 300 / INT-YOKE 232 bar
