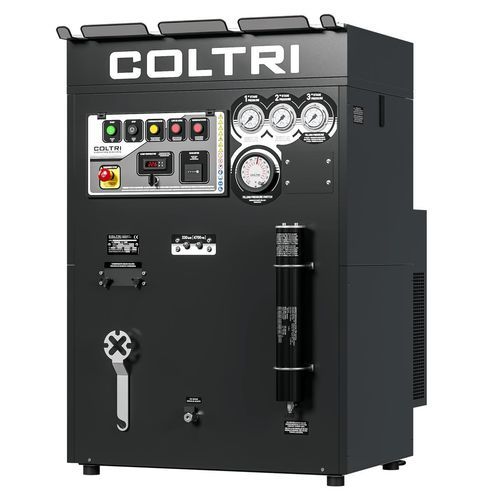

Ship compressor Super Silent

breathing airpistonreciprocating

Overview
Super Silent is a 3-stage high-pressure breathing air compressor from the Efficient Line designed for environments that require low noise levels. The unit combines a silenced cab chassis, a high-performance 3-stage pumping unit and the Maxifilter purification system to deliver breathing air compliant with DIN EN 12021 when fitted with original cartridges. The design prioritizes service access and safe, diagnostics-friendly operation.

3-stage high pressure pumping unit

• Aluminum monoblock construction
• Spray lubrication with tang immersed in oil
• Suction filter: 10 µm
• Pipes, fittings and nuts in AISI 316 stainless steel
• Intermediate condensate separator after the second stage
• High-pressure final condensate separators
• Safety valves after each compression stage
• Die-cast aluminum cylinders with Nicasil liner for high heat dispersion
• Forged aluminum connecting rods
• Forged steel crankshaft
• Stainless steel valves for 2nd and 3rd stages
• Heavy-duty roller bearings
• Hardened steel third stage with 5 special cast-iron segments
• Second and third stages with thrust pads to eliminate lateral piston forces
• Integrated Maxifilter filtration system

Electric motor
Drive is provided by a belt-driven electric motor available in single-phase or three-phase versions with power ratings from 4 to 5.5 kW, selected according to model and site requirements.

Purification system Maxifilter
The Maxifilter purification system combines molecular sieve and activated carbon cartridges to remove moisture, oil vapour and contaminants. Installed after the 2nd/3rd stage separators and before the pressure-holding valve, it provides an essential barrier against moisture. Filter capacity: 890 m³ (inlet air 20°C at 200 bar) with original cartridges.

Electrical cabinet

• ON/OFF switch with motor protection
• Electromechanical pressure switch to stop the compressor at final pressure
• Drainage of all interstage separators and of the final separator during operation
• Timer for automatic condensate drain device
• Integrated no-load start (automatic discharge on stop)
• Condensate collection tank 5 L with silencer (usable ≈ 3 L) for environmentally safe disposal
• Interstage pressure gauges for stage pressure monitoring and valve tightness checks
• Automatic rotation direction control and internal temperature shutdown/alarms

Frame
Silenced cab chassis designed for low-noise environments. External oil level and drain indications. Control console fitted with interstage gauges, internal temperature indicator, phase-sequence and oil shortage alarms, start/stop and manual condensate drain controls. Constructed in steel with scratch-resistant powder coat Black RAL 9005.

Standard Equipment

• 2 cylinder connections selectable: DIN 232, DIN 300 or INT/YOKE 232 bar
• 2 filling hoses, 1.2 m long
• Pressure holding valve
• Interstage control manometers
• Maxifilter purification system
• Cabin internal temperature sensor with automatic shutdown
• Automatic rotation direction control
• Pressure switch with automatic shutdown
• Oil level control with automatic shutdown
• Automatic condensate drain with conveying system into canister
• Frame color Black RAL 9005

Technical specifications

• Product: Super Silent (Efficient Line)
• Pumping unit: 3-stage high-pressure monoblock (aluminum), Nicasil-lined cylinders
• Suction filter: 10 µm
• Materials: pipes/fittings/nuts in AISI 316 stainless steel
• Condensate handling: intermediate and final separators; condensate tank 5 L (usable ≈ 3 L) with silencer; automatic drains
• Safety: safety valves after each stage; interstage pressure gauges
• Purification: Maxifilter (molecular sieve + activated carbon), capacity 890 m³ (20°C, 200 bar) with original cartridges
• Motor: single-phase or three-phase, 4 ÷ 5.5 kW
• Connections: DIN 232 / DIN 300 / INT-YOKE 232 bar; 2 filling hoses 1.2 m
• Frame finish: steel with scratch-resistant powder coat Black RAL 9005
