Ship crane

boom

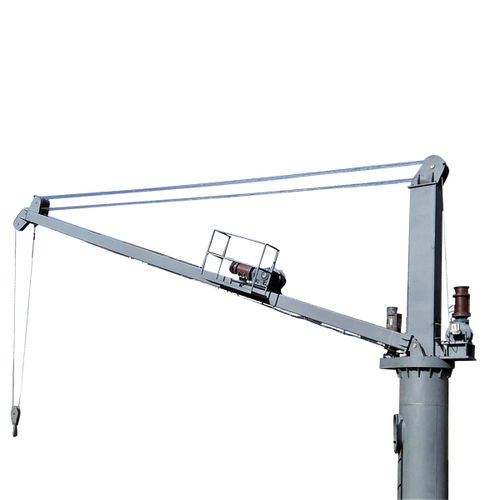

3Tx5m electric slewing crane: mainly used for ships and marine engineering to lift fuel, fuel, chemicals, garbage, food, spare parts and other items. The column is a seamless steel pipe for marine use. The lifting mechanism is composed of a marine lifting motor with brake and a gear box, and a slewing mechanism is composed of a slewing bearing and a reducer. The lifting arm adopts steel square box girder, and the electric control box is controlled by far and short range! Main Technical Specifications: Model: 3Tx5m electric slewing crane Working radius: 5m Lifting speed: 6m/min Rotation speed: 0.8r/min Lifting motor power: 11kw Rotary motor power: 2.2kw Protection level: IP56 Insulation class: Class F Control power supply: 24V safety voltage Power AC380V. 3 phases. 50HZ Working Temperature:-40 to 50℃ Etc. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint, Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
