Ship winch ISO7364
accomodation ladderhoistingelectric drive

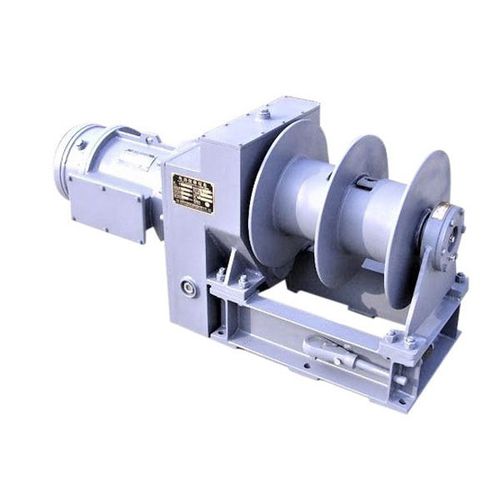

Ship winch - ISO7364 - Zhongyuan Ship Machinery Manufacture (Group) Co., - accomodation ladder / hoisting / electric drive
Ship winch - ISO7364 - Zhongyuan Ship Machinery Manufacture (Group) Co., - accomodation ladder / hoisting / electric drive
Ship winch - ISO7364 - Zhongyuan Ship Machinery Manufacture (Group) Co., - accomodation ladder / hoisting / electric drive - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the Zhongyuan Ship Machinery Manufacture (Group) Co., website for more information

Characteristics

Application domain
for ships
Use
accomodation ladder, hoisting
Drive mechanism
electric drive
Technology
split, double-drum
Material
carbon
Classification
DNV-GL, ABS, BV, CCS, IRS, KR, LR, NK, RINA, RS
Motor power

Max.: 7.5 kW
(10.2 hp)

Voltage

Max.: 650 V

Min.: 380 V

Bollard pull

1,020 kg, 1,632 kg
(2,249 lb, 3,598 lb)

Drum speed

Max.: 20 m/min

Min.: 8 m/min

Rope diameter

13 mm
(1 in)

Max.: 20 mm
(1 in)

Min.: 11 mm
(0 in)

Drum capacity

37 m, 50 m, 95 m
(121'04" , 164'00" , 311'08" )

Max.: 100 m
(328'01" )

Min.: 15 m
(49'02" )

Description

ISO 7364 electric motor driven 20 KN marine pilot ladder winch mainly used for handling the aluminum pilot ladders. This winch is satisfied with latest international standard ISO7363, it is of compact structure equipped with electric control switch, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case ship’s lost power. We can produce winches provided with hydraulic, pneumatic, electric or manual drive. Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment.
