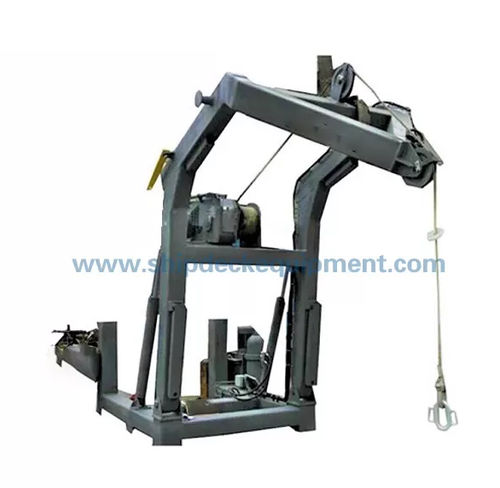

Ship davit JYH31
gravity

Ship davit - JYH31 - Zhongyuan Ship Machinery Manufacture (Group) Co., - gravity
Ship davit - JYH31 - Zhongyuan Ship Machinery Manufacture (Group) Co., - gravity
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Operation
gravity
Lifting capacity

3,161 kg
(6,969 lb)

Description

1.1 The davit is manufactured and tested under the approval of Classification Society in compliance with the requirements of SOLAS 2009 , MODU and Class & Regulating Authority Rules for North sea operations. 1.2 This boat davit is a davit that’s turning out is driven by hydraulic, then lower. In case of emergency, the accumulator may be used for turning out the boat davit, then lower rescue boat with high speed depending on its gravity by remote control. 1.3 In case of failure of power, the manual pump may be used for supplying hydraulic driving to ensure the boat davit to be able to turn out to lower rescue boat. 1.4 Working load for this boat davit is the weight of fully laden boat with full complement person, under this load, the boat davit may turn out, lower and hoist. 1.5 A buffering unit is provided for this appliance, which can protect the boat davit itself and wire rope as well as the boat from great impacting force occurred while braking during hoisting and lowering. 1.6 This appliance is provided with wave compensation unit, which may ensure the boat falls in constantly tensioning condition while the boat rocks on the sea wave so as to protect the safety of the personnel.
